BV — worm gearboxes, compact housing
Compact worm gear reducers, sizes 030 to 090, ratios 7 to 100, up to 350 Nm.
The BV series is the compact worm gearbox range in die-cast aluminium. Sizes 030, 040 and 050 have a round housing that fits very tight transmissions and take modular feet for four fixing positions; sizes 063 to 090 have a square housing. All sizes are lubricated for life and can be mounted in any position.
Key characteristics
Small conveyors, doors and gates, packaging, food-processing and assembly equipment.
- IEC input flange B5 / B14 (PAM 56 – 112) or solid input shaft
- Hollow output shaft; solid shafts, output flanges and torque arm as accessories
- Pre-stage (BVPC) and combined double-worm (BVC / BVSC) configurations
- Epoxy finish RAL 9022
- Synthetic lubrication for life, universal mounting
Available range
| Size | Ratio i | Max. output torque T₂ (Nm) | Input power P₁ (kW) | IEC motor flange (PAM) | Weight (kg) |
|---|---|---|---|---|---|
| BV 030 | 7 – 70 | 22 | 0.09 – 0.25 | 56, 63 B5/B14 | 1 |
| BV 040 | 7 – 100 | 41 | 0.12 – 0.55 | 63, 71 B5/B14 | 2.1 |
| BV 050 | 7 – 100 | 73 | 0.18 – 1.1 | 63, 71, 80 B5/B14 | 3 |
| BV 063 | 7 – 100 | 155 | 0.37 – 2.2 | 71, 80, 90 B5/B14 | 5.2 |
| BV 075 | 7 – 100 | 250 | 0.37 – 4.0 | 71, 80, 90, 100 B5/B14 | 9.2 |
| BV 090 | 7 – 100 | 350 | 0.55 – 4.0 | 80 – 112 B5/B14 | 12.2 |
Technical specification
| Housing | Die-cast aluminium; round with modular feet (030, 040, 050) or square (063, 075, 090) |
|---|---|
| Sizes | 030, 040, 050, 063, 075, 090 |
| Reduction ratios | 7 – 100 (030: 7 – 70) |
| Output torque | ≤ 350 Nm (BV 090) |
| Input power | 0.09 – 4 kW |
| Input | IEC motor flange B5 / B14 (PAM 56 – 112) or solid input shaft |
| Output | Hollow shaft; single or double solid output shaft as accessory |
| Finish | Epoxy paint RAL 9022 |
| Lubrication | Synthetic, lubricated for life, universal mounting position |
| Mounting | Fixing positions P, A, V, N (030 – 050 via modular feet); B3, B6, B7, B8, V5, V6 |
| Max. input speed | 2 800 rpm |
Mounting arrangements
Fixing positions P, A, V, N (030 – 050 via modular feet); B3, B6, B7, B8, V5, V6
- B3Foot-mounted
- B6Foot, side
- B7Foot, side
- B8Foot, inverted
- V5Vertical, shaft down
- V6Vertical, shaft up
Configurations
| Code | Input | Sizes |
|---|---|---|

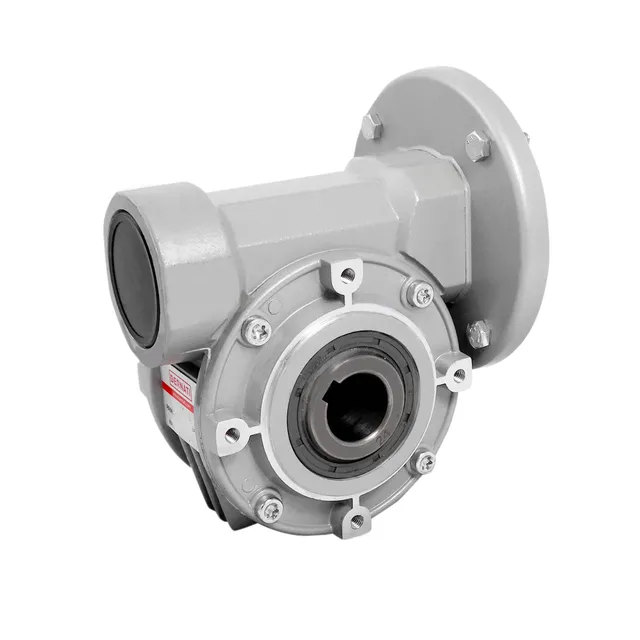

| BV | IEC input flange B5 / B14 | 030 – 090 |

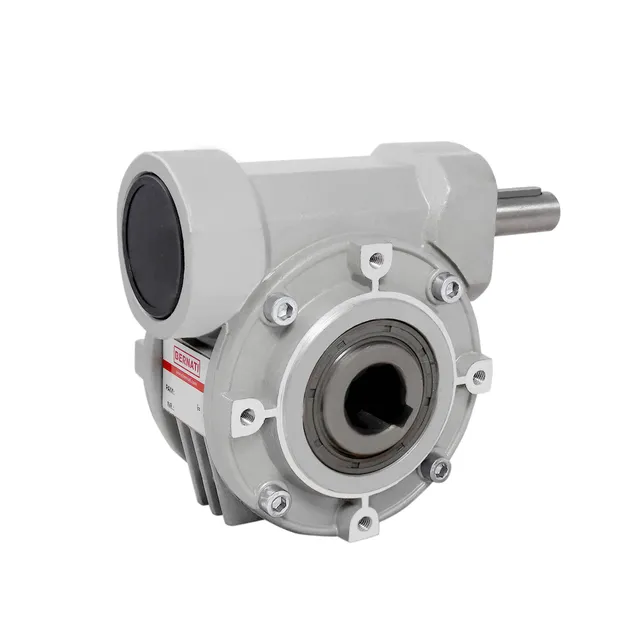

| BVS | Single solid input shaft | 030 – 090 |

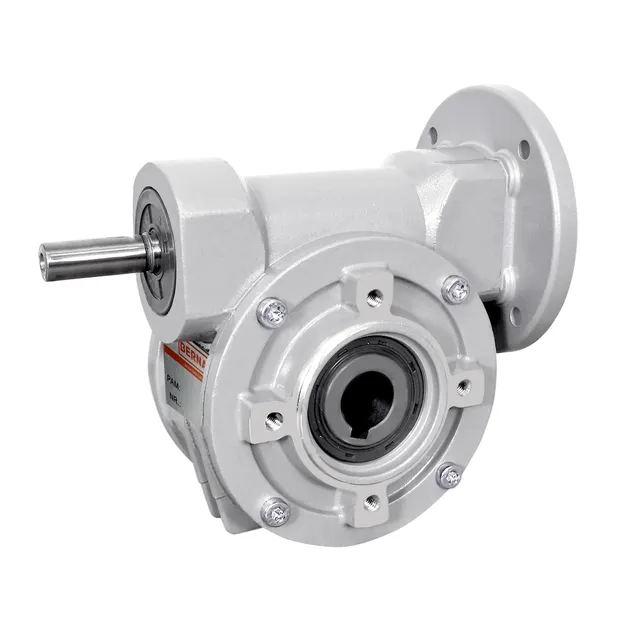

| BVB | IEC input flange and solid input shaft | 030 – 090 |

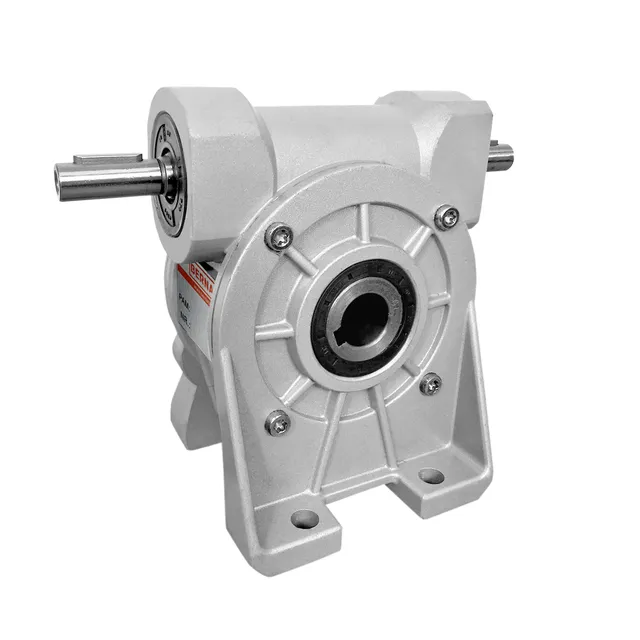

| BVSB | Double solid input shaft | 030 – 090 |

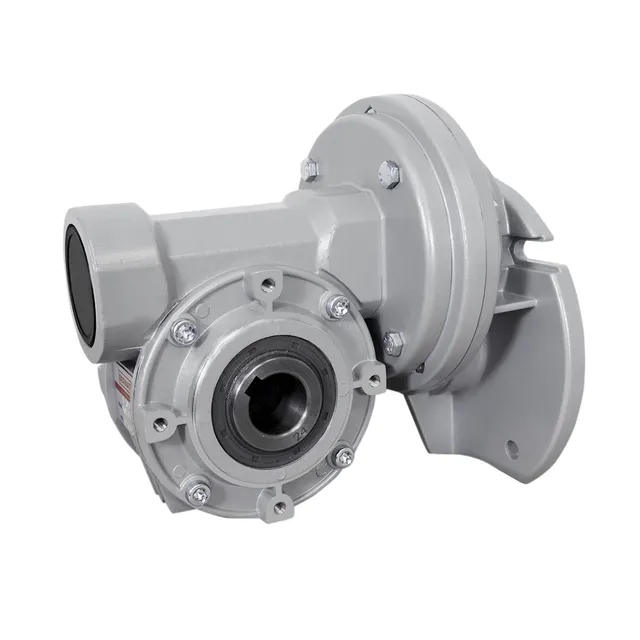

| BVPC | Integrated pre-stage with IEC flange | pre-stage |

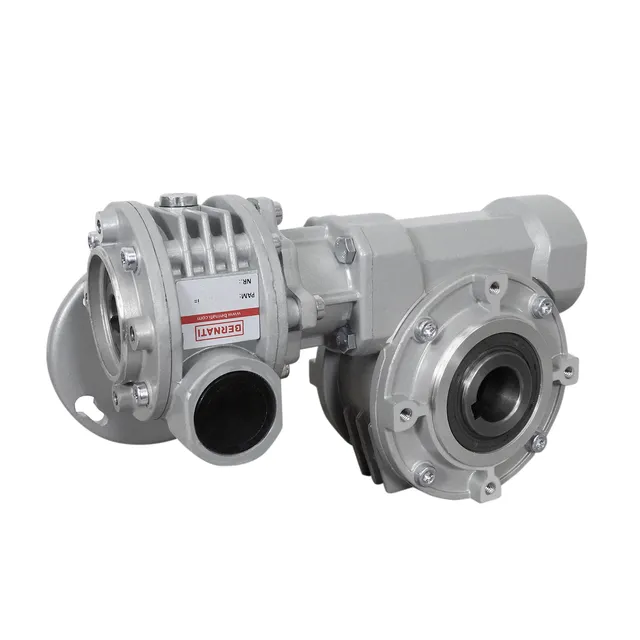

| BVC | Double worm (combined) with IEC flange | combined |

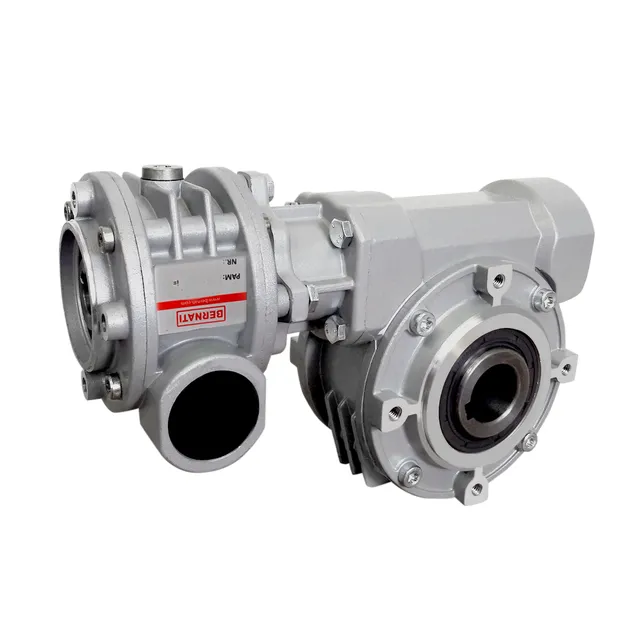

| BVSC | Double worm (combined) with solid input shaft | combined |
Technical downloads
3D / CAD models
3D models (STEP) and 2D drawings are available for every BV variant on our distributor's product pages. Downloading requires a free customer account.
Typical applications
General machinery
Production machines and assembly lines running for long periods: three-phase BMT and BCT motors, worm gearboxes with pre-stage for low speeds.
Packaging
Conveyors, filling, wrapping and labelling machines: BMT motors with BG or BV gearboxes for compact right-angle drives.
Assembly and disassembly
Modular gearbox configurations and accessories simplify integration and servicing.
