BG — worm gearboxes, square housing

Square worm gear reducers, sizes 025 to 150, ratios 7.5 to 100, up to 1 610 Nm.

The BG series is Bernati's main worm gearbox range. The square housing is die-cast aluminium up to size 090 and cast iron from 110 to 150, and can be fixed in any mounting position. Sizes up to 090 are lubricated for life with synthetic oil; sizes 110 to 150 use mineral oil and a simple maintenance plan.

Manufacturer: BERNATISource: official Bernati catalogue
BG — worm gearboxes, square housing

Key characteristics

Conveyors, packaging lines, mixers, hoists and general machinery needing compact right-angle reduction.

Available range

BG series — Sizes
SizeRatio iMax. output torque T₂ (Nm)Input power P₁ (kW)IEC motor flange (PAM)Weight (kg)
BG 0257.5 – 60140.0956 B140.7
BG 0307.5 – 80220.09 – 0.2556, 63 B5/B141.2
BG 0407.5 – 100520.18 – 0.5556, 63, 71 B5/B142.3
BG 0507.5 – 100870.18 – 0.7563, 71, 80 B5/B143.5
BG 0637.5 – 1001650.37 – 1.571, 80, 90 B5/B146.2
BG 0757.5 – 1002600.55 – 4.071, 80, 90, 100 B5/B149
BG 0907.5 – 1004780.75 – 4.080, 90, 100 B5/B1413
BG 1107.5 – 1007641.1 – 7.590 – 132 B5/B1435
BG 1307.5 – 10012251.5 – 7.590 – 132 B5/B1448
BG 1507.5 – 10016103.0 – 15100 – 160 B584

Technical specification

BG series
HousingSquare, die-cast aluminium (025 – 090); cast iron (110 – 150)
Sizes025, 030, 040, 050, 063, 075, 090, 110, 130, 150
Reduction ratios7.5 – 100 (025: 7.5 – 60; 030: 7.5 – 80)
Output torque≤ 1 610 Nm (BG 150)
Input power0.09 – 15 kW
InputIEC motor flange B5 / B14 (PAM 56 – 160) or solid input shaft
OutputHollow shaft; single or double solid output shaft as accessory
FinishEpoxy paint RAL 9006
Lubrication025 – 090 and pre-stages: synthetic, lubricated for life, universal mounting; 110 – 150: mineral oil, B3 fill, simple maintenance plan
MountingB3, B6, B7, B8, V5, V6 — square housing mounts in any position
Max. input speed2 800 rpm

Mounting arrangements

B3, B6, B7, B8, V5, V6 — square housing mounts in any position

Configurations

BG series — Configurations
CodeInputSizes

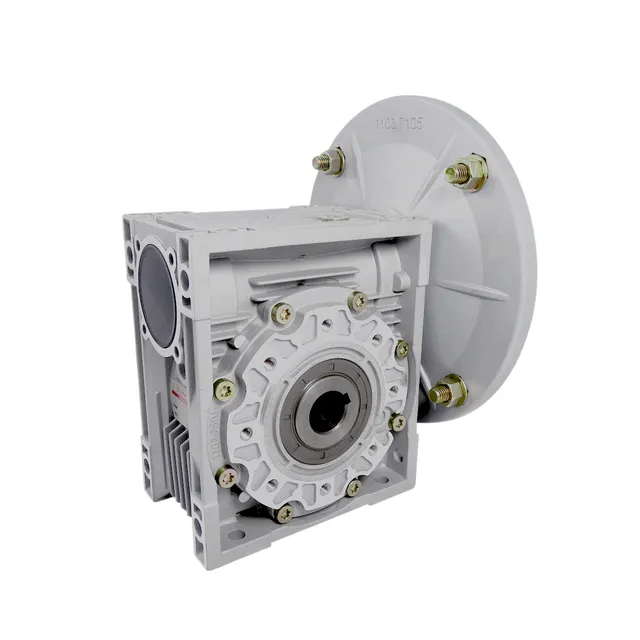

BGIEC input flange B5 / B14025 – 150

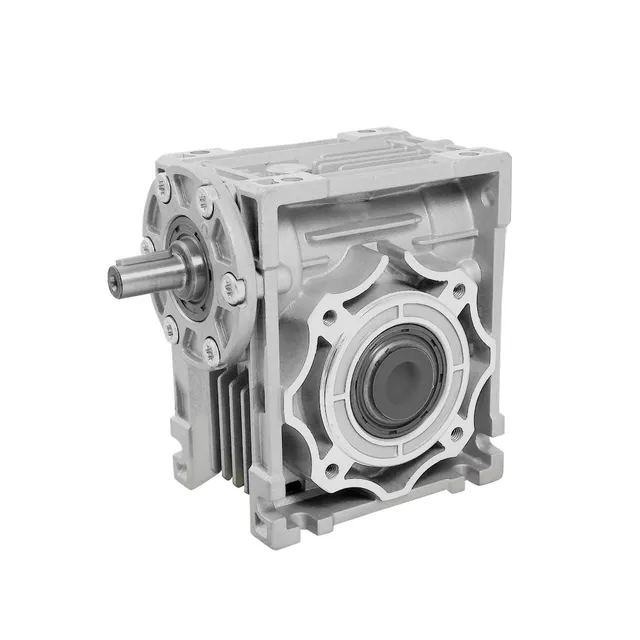

BGSSingle solid input shaft030 – 150

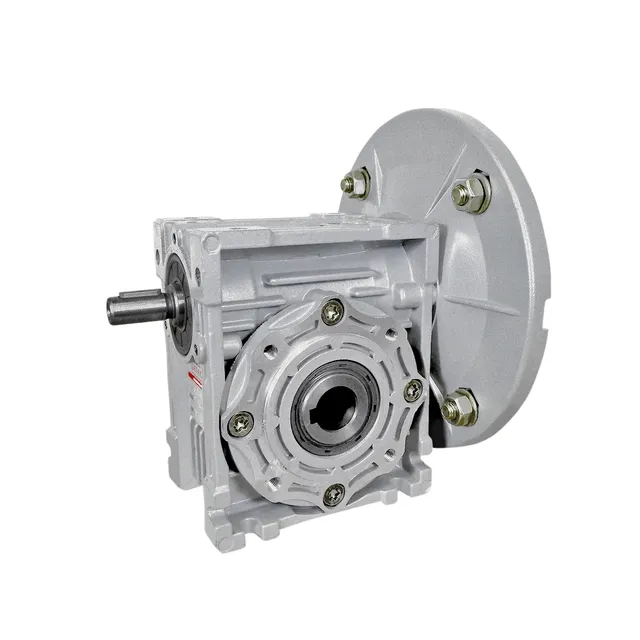

BGBIEC input flange and solid input shaft030 – 150

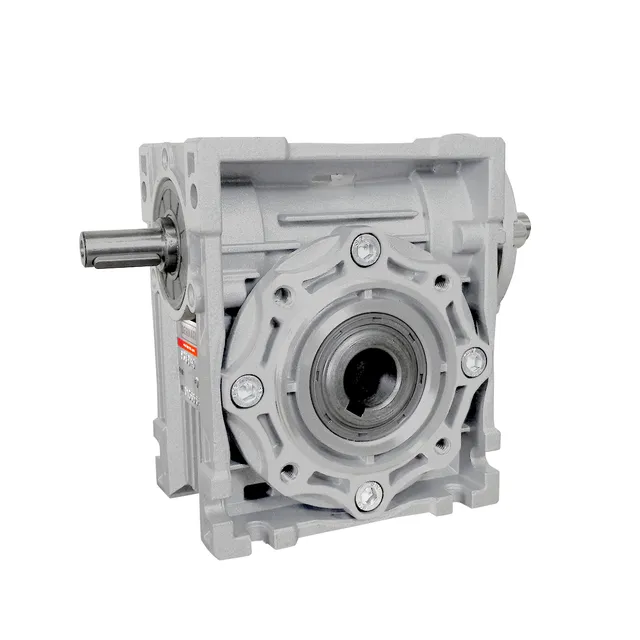

BGSBDouble solid input shaft030 – 150

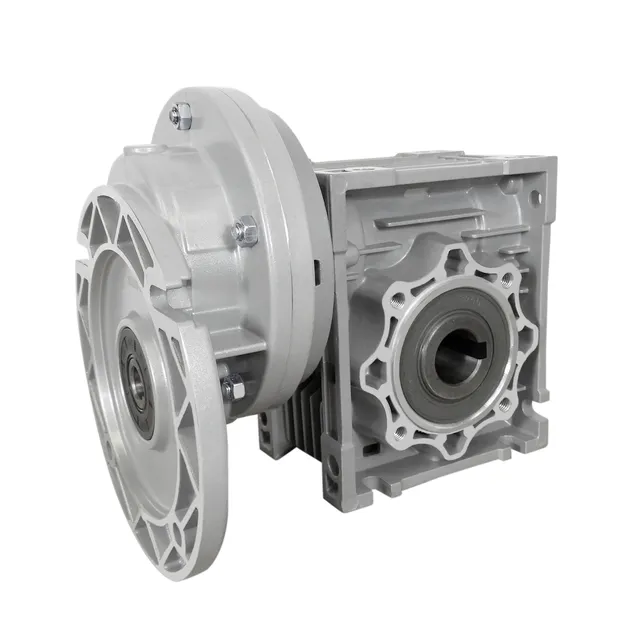

BGPCIntegrated pre-stage with IEC flangepre-stage 63 – 90

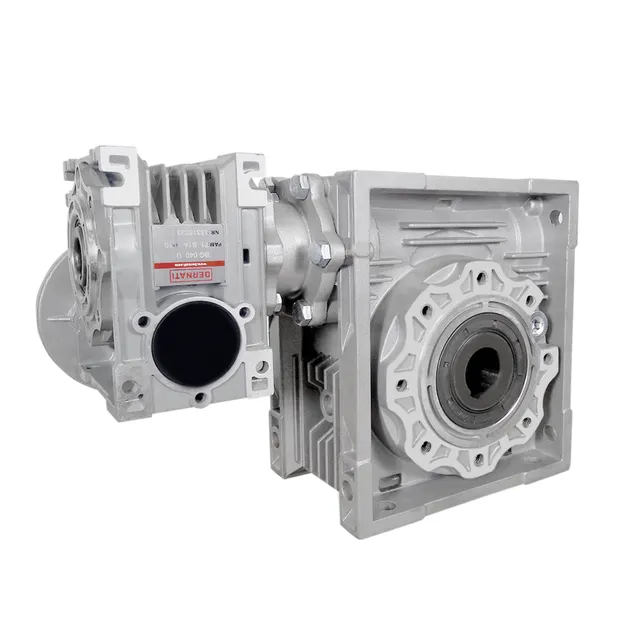

BGCDouble worm (combined) with IEC flangecombined

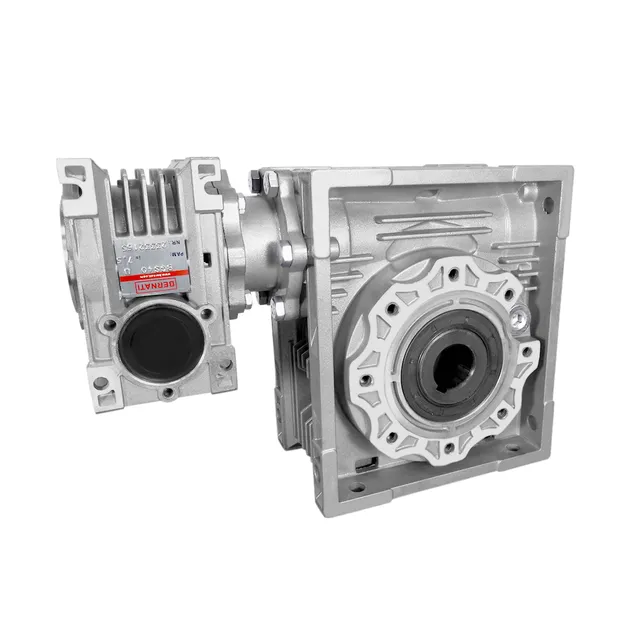

BGSCDouble worm (combined) with solid input shaftcombined
BGLWith torque limiter (data on request)—

Technical downloads

3D / CAD models

3D models (STEP) and 2D drawings are available for every BG variant on our distributor's product pages. Downloading requires a free customer account.

Get BG 3D / CAD models

Typical applications

Technical enquiry about BG
