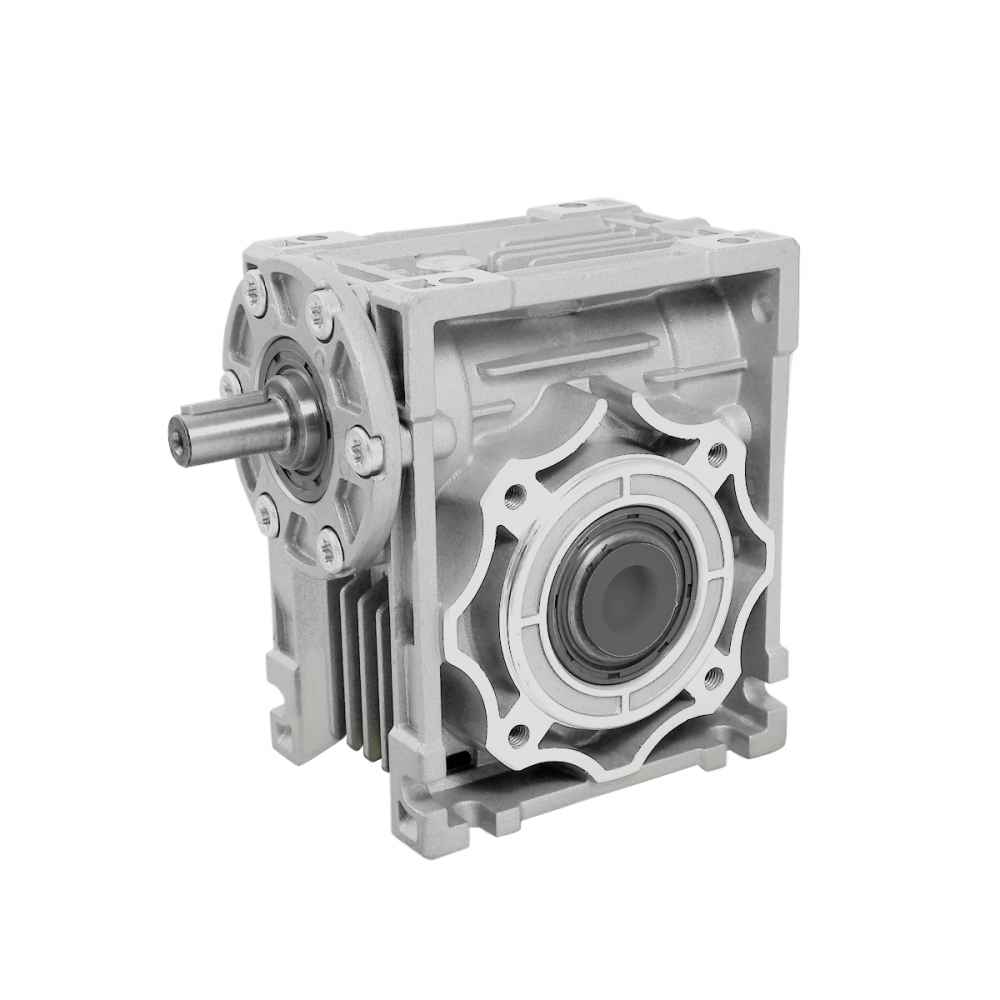

BGS Worm gearboxes with single input shaft
BERNATI worm gearboxes are a high quality, modular solution for transforming power in the
required format (speed and torque) to drive any application.
All components use high quality materials:
- Worm gear in hardened, alloy steel case;
- Worm wheel in high resistance bronze;
- Optimized gear profile for low noise operation;
- Exterior housing in die cast aluminum, up to size 090;
- Exterior housing in cast iron, for sizes 110 to 150;
- BG range with epoxy painting in RAL 9006;
- Housing designed for versatile assembly and efficient heat dissipation;
- Long life and high reliability of bearings and seals;
- Sizes 025 to 090 and pre-stages are lubricated for life with synthetic lubricant in the ideal quantity to allow a universal mounting position;
- Sizes 110 to 150 are lubricated with mineral oil, in a quantity adequate for B3 assembly position and require a simple maintenance plan.
- The BG series has a square format that allows fixing in any position.
BGS Type - Gearbox with single, solid input shaft configuration.
Sku | Size | Gear Ratio | Version | Input Configuration | PAM | Shipped In | Price * | |
---|---|---|---|---|---|---|---|---|
BGS11010 | 110 | 10 | U | Input Shaft | - | On Request | €491.69 |
|
BGS110100 | 110 | 100 | U | Input Shaft | - | On Request | €491.69 |
|
BGS11015 | 110 | 15 | U | Input Shaft | - | On Request | €491.69 |
|
BGS11020 | 110 | 20 | U | Input Shaft | - | On Request | €491.69 |
|
BGS11025 | 110 | 25 | U | Input Shaft | - | On Request | €491.69 |
|
BGS11030 | 110 | 30 | U | Input Shaft | - | On Request | €491.69 |
|
BGS11040 | 110 | 40 | U | Input Shaft | - | On Request | €491.69 |
|
BGS11050 | 110 | 50 | U | Input Shaft | - | On Request | €491.69 |
|
BGS11060 | 110 | 60 | U | Input Shaft | - | On Request | €491.69 |
|
BGS1107.5 | 110 | 7.5 | U | Input Shaft | - | On Request | €491.69 |
|
BGS11080 | 110 | 80 | U | Input Shaft | - | On Request | €491.69 |
|
BGS110FA10 | 110 | 10 | FA | Input Shaft | - | On Request | €548.97 |
|
BGS110FA100 | 110 | 100 | FA | Input Shaft | - | On Request | €548.97 |
|
BGS110FA15 | 110 | 15 | FA | Input Shaft | - | On Request | €548.97 |
|
BGS110FA20 | 110 | 20 | FA | Input Shaft | - | On Request | €548.97 |
|
BGS110FA25 | 110 | 25 | FA | Input Shaft | - | On Request | €548.97 |
|
BGS110FA30 | 110 | 30 | FA | Input Shaft | - | On Request | €548.97 |
|
BGS110FA40 | 110 | 40 | FA | Input Shaft | - | On Request | €548.97 |
|
BGS110FA50 | 110 | 50 | FA | Input Shaft | - | On Request | €548.97 |
|
BGS110FA60 | 110 | 60 | FA | Input Shaft | - | On Request | €548.97 |
|
BGS110FA7.5 | 110 | 7.5 | FA | Input Shaft | - | On Request | €548.97 |
|
BGS110FA80 | 110 | 80 | FA | Input Shaft | - | On Request | €548.97 |
|
BGS110FB10 | 110 | 10 | FB | Input Shaft | - | On Request | €567.42 |
|
BGS110FB100 | 110 | 100 | FB | Input Shaft | - | On Request | €567.42 |
|
BGS110FB15 | 110 | 15 | FB | Input Shaft | - | On Request | €567.42 |
|
BGS110FB20 | 110 | 20 | FB | Input Shaft | - | On Request | €567.42 |
|
BGS110FB25 | 110 | 25 | FB | Input Shaft | - | On Request | €567.42 |
|
BGS110FB30 | 110 | 30 | FB | Input Shaft | - | On Request | €567.42 |
|
BGS110FB40 | 110 | 40 | FB | Input Shaft | - | On Request | €567.42 |
|
BGS110FB50 | 110 | 50 | FB | Input Shaft | - | On Request | €567.42 |
|
BGS110FB60 | 110 | 60 | FB | Input Shaft | - | On Request | €567.42 |
|
BGS110FB7.5 | 110 | 7.5 | FB | Input Shaft | - | On Request | €567.42 |
|
BGS110FB80 | 110 | 80 | FB | Input Shaft | - | On Request | €567.42 |
|
BGS13010 | 130 | 10 | U | Input Shaft | - | On Request | €652.03 |
|
BGS130100 | 130 | 100 | U | Input Shaft | - | On Request | €652.03 |
|
BGS13015 | 130 | 15 | U | Input Shaft | - | On Request | €652.03 |
|
BGS13020 | 130 | 20 | U | Input Shaft | - | On Request | €652.03 |
|
BGS13025 | 130 | 25 | U | Input Shaft | - | On Request | €652.03 |
|
BGS13030 | 130 | 30 | U | Input Shaft | - | On Request | €652.03 |
|
BGS13040 | 130 | 40 | U | Input Shaft | - | On Request | €652.03 |
|
BGS13050 | 130 | 50 | U | Input Shaft | - | On Request | €652.03 |
|
BGS13060 | 130 | 60 | U | Input Shaft | - | On Request | €652.03 |
|
BGS1307.5 | 130 | 7.5 | U | Input Shaft | - | On Request | €652.03 |
|
BGS13080 | 130 | 80 | U | Input Shaft | - | On Request | €652.03 |
|
BGS130FA10 | 110 | 10 | FA | Input Shaft | - | On Request | €728.20 |
|
BGS130FA100 | 130 | 100 | FA | Input Shaft | - | On Request | €728.20 |
|
BGS130FA15 | 130 | 15 | FA | Input Shaft | - | On Request | €728.20 |
|
BGS130FA20 | 130 | 20 | FA | Input Shaft | - | On Request | €728.20 |
|
BGS130FA25 | 130 | 25 | FA | Input Shaft | - | On Request | €728.20 |
|
BGS130FA30 | 130 | 30 | FA | Input Shaft | - | On Request | €728.20 |
|
BGS130FA40 | 130 | 40 | FA | Input Shaft | - | On Request | €728.20 |
|
BGS130FA50 | 130 | 50 | FA | Input Shaft | - | On Request | €728.20 |
|
BGS130FA60 | 130 | 60 | FA | Input Shaft | - | On Request | €728.20 |
|
BGS130FA7.5 | 130 | 7.5 | FA | Input Shaft | - | On Request | €728.20 |
|
BGS130FA80 | 130 | 80 | FA | Input Shaft | - | On Request | €728.20 |
|
BGS15010 | 150 | 10 | U | Input Shaft | - | On Request | €1,129.91 |
|
BGS150100 | 150 | 100 | U | Input Shaft | - | On Request | €1,129.91 |
|
BGS15015 | 150 | 15 | U | Input Shaft | - | On Request | €1,129.91 |
|
BGS15020 | 150 | 20 | U | Input Shaft | - | On Request | €1,129.91 |
|
BGS15025 | 150 | 25 | U | Input Shaft | - | On Request | €1,129.91 |
|
BGS15030 | 150 | 30 | U | Input Shaft | - | On Request | €1,129.91 |
|
BGS15040 | 150 | 40 | U | Input Shaft | - | On Request | €1,129.91 |
|
BGS15050 | 150 | 50 | U | Input Shaft | - | On Request | €1,129.91 |
|
BGS15060 | 150 | 60 | U | Input Shaft | - | On Request | €1,129.91 |
|
BGS1507.5 | 150 | 7.5 | U | Input Shaft | - | On Request | €1,129.91 |
|
BGS15080 | 150 | 80 | U | Input Shaft | - | On Request | €1,129.91 |
|
BGS150FA10 | 150 | 10 | FA | Input Shaft | - | On Request | €1,206.08 |
|
BGS150FA100 | 150 | 100 | FA | Input Shaft | - | On Request | €1,206.08 |
|
BGS150FA15 | 150 | 15 | FA | Input Shaft | - | On Request | €1,206.08 |
|
BGS150FA20 | 150 | 20 | FA | Input Shaft | - | On Request | €1,206.08 |
|
BGS150FA25 | 150 | 25 | FA | Input Shaft | - | On Request | €1,206.08 |
|
BGS150FA30 | 150 | 30 | FA | Input Shaft | - | On Request | €1,206.08 |
|
BGS150FA40 | 150 | 40 | FA | Input Shaft | - | On Request | €1,206.08 |
|
BGS150FA50 | 150 | 50 | FA | Input Shaft | - | On Request | €1,206.08 |
|
BGS150FA60 | 150 | 60 | FA | Input Shaft | - | On Request | €1,206.08 |
|
BGS150FA7.5 | 150 | 7.5 | FA | Input Shaft | - | On Request | €1,206.08 |
|
BGS150FA80 | 150 | 80 | FA | Input Shaft | - | On Request | €1,206.08 |
|
BGS3010 | 30 | 10 | U | Input Shaft | - | On Request | €73.02 |
|
BGS3015 | 30 | 15 | U | Input Shaft | - | 1-2 Days | €73.02 |
|
BGS3020 | 30 | 20 | U | Input Shaft | - | On Request | €73.02 |
|
BGS3025 | 30 | 25 | U | Input Shaft | - | On Request | €73.02 |
|
BGS3030 | 30 | 30 | U | Input Shaft | - | On Request | €73.02 |
|
BGS3040 | 30 | 40 | U | Input Shaft | - | On Request | €73.02 |
|
BGS3050 | 30 | 50 | U | Input Shaft | - | On Request | €73.02 |
|
BGS3060 | 30 | 60 | U | Input Shaft | - | On Request | €73.02 |
|
BGS307.5 | 30 | 7.5 | U | Input Shaft | - | 1-2 Days | €73.02 |
|
BGS3080 | 30 | 80 | U | Input Shaft | - | On Request | €73.02 |
|
BGS30FA10 | 30 | 10 | FA | Input Shaft | - | On Request | €79.76 |
|
BGS30FA15 | 30 | 15 | FA | Input Shaft | - | 1-2 Days | €79.76 |
|
BGS30FA20 | 30 | 20 | FA | Input Shaft | - | On Request | €79.76 |
|
BGS30FA25 | 30 | 25 | FA | Input Shaft | - | On Request | €79.76 |
|
BGS30FA30 | 30 | 30 | FA | Input Shaft | - | On Request | €79.76 |
|
BGS30FA40 | 30 | 40 | FA | Input Shaft | - | On Request | €79.76 |
|
BGS30FA50 | 30 | 50 | FA | Input Shaft | - | On Request | €79.76 |
|
BGS30FA60 | 30 | 60 | FA | Input Shaft | - | On Request | €79.76 |
|
BGS30FA7.5 | 30 | 7.5 | FA | Input Shaft | - | 1-2 Days | €79.76 |
|
BGS30FA80 | 30 | 80 | FA | Input Shaft | - | On Request | €79.76 |
|
BGS4010 | 40 | 10 | U | Input Shaft | - | 1-2 Days | €85.22 |
|
BGS40100 | 40 | 100 | U | Input Shaft | - | On Request | €85.22 |
|
BGS4015 | 40 | 15 | U | Input Shaft | - | On Request | €85.22 |
|
BGS4020 | 40 | 20 | U | Input Shaft | - | On Request | €85.22 |
|
BGS4025 | 40 | 25 | U | Input Shaft | - | On Request | €85.22 |
|
BGS4030 | 40 | 30 | U | Input Shaft | - | 1-2 Days | €85.22 |
|
BGS4040 | 40 | 40 | U | Input Shaft | - | On Request | €85.22 |
|
BGS4050 | 40 | 50 | U | Input Shaft | - | On Request | €85.22 |
|
BGS4060 | 40 | 60 | U | Input Shaft | - | On Request | €85.22 |
|
BGS407.5 | 40 | 7.5 | U | Input Shaft | - | 1-2 Days | €85.22 |
|
BGS4080 | 40 | 80 | U | Input Shaft | - | On Request | €85.22 |
|
BGS40FA10 | 40 | 10 | FA | Input Shaft | - | 1-2 Days | €92.91 |
|
BGS40FA100 | 40 | 100 | FA | Input Shaft | - | On Request | €92.91 |
|
BGS40FA15 | 40 | 15 | FA | Input Shaft | - | On Request | €92.91 |
|
BGS40FA20 | 40 | 20 | FA | Input Shaft | - | On Request | €92.91 |
|
BGS40FA25 | 40 | 25 | FA | Input Shaft | - | On Request | €92.91 |
|
BGS40FA30 | 40 | 30 | FA | Input Shaft | - | 1-2 Days | €92.91 |
|
BGS40FA40 | 40 | 40 | FA | Input Shaft | - | On Request | €92.91 |
|
BGS40FA50 | 40 | 50 | FA | Input Shaft | - | On Request | €92.91 |
|
BGS40FA60 | 40 | 60 | FA | Input Shaft | - | On Request | €92.91 |
|
BGS40FA7.5 | 40 | 7.5 | FA | Input Shaft | - | 1-2 Days | €92.91 |
|
BGS40FA80 | 40 | 80 | FA | Input Shaft | - | On Request | €92.91 |
|
BGS40FB10 | 40 | 10 | FB | Input Shaft | - | 1-2 Days | €97.37 |
|
BGS40FB100 | 40 | 100 | FB | Input Shaft | - | On Request | €97.37 |
|
BGS40FB15 | 40 | 15 | FB | Input Shaft | - | On Request | €97.37 |
|
BGS40FB20 | 40 | 20 | FB | Input Shaft | - | On Request | €97.37 |
|
BGS40FB25 | 40 | 25 | FB | Input Shaft | - | On Request | €97.37 |
|
BGS40FB30 | 40 | 30 | FB | Input Shaft | - | 1-2 Days | €97.37 |
|
BGS40FB40 | 40 | 40 | FB | Input Shaft | - | On Request | €97.37 |
|
BGS40FB50 | 40 | 50 | FB | Input Shaft | - | On Request | €97.37 |
|
BGS40FB60 | 40 | 60 | FB | Input Shaft | - | On Request | €97.37 |
|
BGS40FB7.5 | 40 | 7.5 | FB | Input Shaft | - | 1-2 Days | €97.37 |
|
BGS40FB80 | 40 | 80 | FB | Input Shaft | - | On Request | €97.37 |
|
BGS40FC10 | 40 | 10 | FC | Input Shaft | - | 1-2 Days | €94.25 |
|
BGS40FC100 | 40 | 100 | FC | Input Shaft | - | On Request | €94.25 |
|
BGS40FC15 | 40 | 15 | FC | Input Shaft | - | On Request | €94.25 |
|
BGS40FC20 | 40 | 20 | FC | Input Shaft | - | On Request | €94.25 |
|
BGS40FC25 | 40 | 25 | FC | Input Shaft | - | On Request | €94.25 |
|
BGS40FC30 | 40 | 30 | FC | Input Shaft | - | 1-2 Days | €94.25 |
|
BGS40FC40 | 40 | 40 | FC | Input Shaft | - | On Request | €94.25 |
|
BGS40FC50 | 40 | 50 | FC | Input Shaft | - | On Request | €94.25 |
|
BGS40FC60 | 40 | 60 | FC | Input Shaft | - | On Request | €94.25 |
|
BGS40FC7.5 | 40 | 7.5 | FC | Input Shaft | - | 1-2 Days | €94.25 |
|
BGS40FC80 | 40 | 80 | FC | Input Shaft | - | On Request | €94.25 |
|
BGS40FD10 | 40 | 10 | FD | Input Shaft | - | On Request | €96.48 |
|
BGS40FD100 | 40 | 100 | FD | Input Shaft | - | On Request | €96.48 |
|
BGS40FD15 | 40 | 15 | FD | Input Shaft | - | On Request | €96.48 |
|
BGS40FD20 | 40 | 20 | FD | Input Shaft | - | On Request | €96.48 |
|
BGS40FD25 | 40 | 25 | FD | Input Shaft | - | On Request | €96.48 |
|
BGS40FD30 | 40 | 30 | FD | Input Shaft | - | On Request | €96.48 |
|
BGS40FD40 | 40 | 40 | FD | Input Shaft | - | On Request | €96.48 |
|
BGS40FD50 | 40 | 50 | FD | Input Shaft | - | On Request | €96.48 |
|
BGS40FD60 | 40 | 60 | FD | Input Shaft | - | On Request | €96.48 |
|
BGS40FD7.5 | 40 | 7.5 | FD | Input Shaft | - | On Request | €96.48 |
|
BGS40FD80 | 40 | 80 | FC | Input Shaft | - | On Request | €96.48 |
|
BGS5010 | 50 | 10 | U | Input Shaft | - | On Request | €120.93 |
|
BGS50100 | 50 | 100 | U | Input Shaft | - | On Request | €120.93 |
|
BGS5015 | 50 | 15 | U | Input Shaft | - | On Request | €120.93 |
|
BGS5020 | 50 | 20 | U | Input Shaft | - | On Request | €120.93 |
|
BGS5025 | 50 | 25 | U | Input Shaft | - | On Request | €120.93 |
|
BGS5030 | 50 | 30 | U | Input Shaft | - | On Request | €120.93 |
|
BGS5040 | 50 | 40 | U | Input Shaft | - | On Request | €120.93 |
|
BGS5050 | 50 | 50 | U | Input Shaft | - | On Request | €120.93 |
|
BGS5060 | 50 | 60 | U | Input Shaft | - | On Request | €120.93 |
|
BGS507.5 | 50 | 7.5 | U | Input Shaft | - | 1-2 Days | €120.93 |
|
BGS5080 | 50 | 80 | U | Input Shaft | - | On Request | €120.93 |
|
BGS50FA10 | 50 | 10 | FA | Input Shaft | - | On Request | €129.51 |
|
BGS50FA100 | 50 | 100 | FA | Input Shaft | - | On Request | €129.51 |
|
BGS50FA15 | 50 | 15 | FA | Input Shaft | - | On Request | €129.51 |
|
BGS50FA20 | 50 | 20 | FA | Input Shaft | - | On Request | €129.51 |
|
BGS50FA25 | 50 | 25 | FA | Input Shaft | - | On Request | €129.51 |
|
BGS50FA30 | 50 | 30 | FA | Input Shaft | - | On Request | €129.51 |
|
BGS50FA40 | 50 | 40 | FA | Input Shaft | - | On Request | €129.51 |
|
BGS50FA50 | 50 | 50 | FA | Input Shaft | - | On Request | €129.51 |
|
BGS50FA60 | 50 | 60 | FA | Input Shaft | - | On Request | €129.51 |
|
BGS50FA7.5 | 50 | 7.5 | FA | Input Shaft | - | 1-2 Days | €129.51 |
|
BGS50FA80 | 50 | 80 | FA | Input Shaft | - | On Request | €129.51 |
|
BGS50FB10 | 50 | 10 | FB | Input Shaft | - | On Request | €134.42 |
|
BGS50FB100 | 50 | 100 | FB | Input Shaft | - | On Request | €134.42 |
|
BGS50FB15 | 50 | 15 | FB | Input Shaft | - | On Request | €134.42 |
|
BGS50FB20 | 50 | 20 | FB | Input Shaft | - | On Request | €134.42 |
|
BGS50FB25 | 50 | 25 | FB | Input Shaft | - | On Request | €134.42 |
|
BGS50FB30 | 50 | 30 | FB | Input Shaft | - | On Request | €134.42 |
|
BGS50FB40 | 50 | 40 | FB | Input Shaft | - | On Request | €134.42 |
|
BGS50FB50 | 50 | 50 | FB | Input Shaft | - | On Request | €134.42 |
|
BGS50FB60 | 50 | 60 | FB | Input Shaft | - | On Request | €134.42 |
|
BGS50FB7.5 | 50 | 7.5 | FB | Input Shaft | - | 1-2 Days | €134.42 |
|
BGS50FB80 | 50 | 80 | FB | Input Shaft | - | On Request | €134.42 |
|
BGS50FC10 | 50 | 10 | FC | Input Shaft | - | On Request | €130.40 |
|
BGS50FC100 | 50 | 100 | FC | Input Shaft | - | On Request | €130.40 |
|
BGS50FC15 | 50 | 15 | FC | Input Shaft | - | On Request | €130.40 |
|
BGS50FC20 | 50 | 20 | FC | Input Shaft | - | On Request | €130.40 |
|
BGS50FC25 | 50 | 25 | FC | Input Shaft | - | On Request | €130.40 |
|
BGS50FC30 | 50 | 30 | FC | Input Shaft | - | On Request | €130.40 |
|
BGS50FC40 | 50 | 40 | FC | Input Shaft | - | On Request | €130.40 |
|
BGS50FC50 | 50 | 50 | FC | Input Shaft | - | On Request | €130.40 |
|
BGS50FC60 | 50 | 60 | FC | Input Shaft | - | On Request | €130.40 |
|
BGS50FC7.5 | 50 | 7.5 | FC | Input Shaft | - | 1-2 Days | €130.40 |
|
BGS50FC80 | 50 | 80 | FC | Input Shaft | - | On Request | €130.40 |
|
BGS50FD10 | 50 | 10 | FD | Input Shaft | - | On Request | €138.98 |
|
BGS50FD100 | 50 | 100 | FD | Input Shaft | - | On Request | €138.98 |
|
BGS50FD15 | 50 | 15 | FD | Input Shaft | - | On Request | €138.98 |
|
BGS50FD20 | 50 | 20 | FD | Input Shaft | - | On Request | €138.98 |
|
BGS50FD25 | 50 | 25 | FD | Input Shaft | - | On Request | €138.98 |
|
BGS50FD30 | 50 | 30 | FD | Input Shaft | - | On Request | €138.98 |
|
BGS50FD40 | 50 | 40 | FD | Input Shaft | - | On Request | €138.98 |
|
BGS50FD50 | 50 | 50 | FD | Input Shaft | - | On Request | €138.98 |
|
BGS50FD60 | 50 | 60 | FD | Input Shaft | - | On Request | €138.98 |
|
BGS50FD7.5 | 50 | 7.5 | FD | Input Shaft | - | 1-2 Days | €138.98 |
|
BGS50FD80 | 50 | 80 | FD | Input Shaft | - | On Request | €138.98 |
|
BGS6310 | 63 | 10 | U | Input Shaft | - | On Request | €161.25 |
|
BGS63100 | 63 | 100 | U | Input Shaft | - | On Request | €161.25 |
|
BGS6315 | 63 | 15 | U | Input Shaft | - | On Request | €161.25 |
|
BGS6320 | 63 | 20 | U | Input Shaft | - | 1-2 Days | €161.25 |
|
BGS6325 | 63 | 25 | U | Input Shaft | - | On Request | €161.25 |
|
BGS6330 | 63 | 30 | U | Input Shaft | - | On Request | €161.25 |
|
BGS6340 | 63 | 40 | U | Input Shaft | - | On Request | €161.25 |
|
BGS6350 | 63 | 50 | U | Input Shaft | - | On Request | €161.25 |
|
BGS6360 | 63 | 60 | U | Input Shaft | - | On Request | €161.25 |
|
BGS637.5 | 63 | 7.5 | U | Input Shaft | - | On Request | €161.25 |
|
BGS6380 | 63 | 80 | U | Input Shaft | - | On Request | €161.25 |
|
BGS63FA10 | 63 | 10 | FA | Input Shaft | - | On Request | €172.06 |
|
BGS63FA100 | 63 | 100 | FA | Input Shaft | - | On Request | €172.06 |
|
BGS63FA15 | 63 | 15 | FA | Input Shaft | - | On Request | €172.06 |
|
BGS63FA20 | 63 | 20 | FA | Input Shaft | - | 1-2 Days | €172.06 |
|
BGS63FA25 | 63 | 25 | FA | Input Shaft | - | On Request | €172.06 |
|
BGS63FA30 | 63 | 30 | FA | Input Shaft | - | On Request | €172.06 |
|
BGS63FA40 | 63 | 40 | FA | Input Shaft | - | On Request | €172.06 |
|
BGS63FA50 | 63 | 50 | FA | Input Shaft | - | On Request | €172.06 |
|
BGS63FA60 | 63 | 60 | FA | Input Shaft | - | On Request | €172.06 |
|
BGS63FA7.5 | 63 | 7.5 | FA | Input Shaft | - | On Request | €172.06 |
|
BGS63FA80 | 63 | 80 | FA | Input Shaft | - | On Request | €172.06 |
|
BGS63FB10 | 63 | 10 | FB | Input Shaft | - | On Request | €177.02 |
|
BGS63FB100 | 63 | 100 | FB | Input Shaft | - | On Request | €177.02 |
|
BGS63FB15 | 63 | 15 | FB | Input Shaft | - | On Request | €177.02 |
|
BGS63FB20 | 63 | 20 | FB | Input Shaft | - | 1-2 Days | €177.02 |
|
BGS63FB25 | 63 | 25 | FB | Input Shaft | - | On Request | €177.02 |
|
BGS63FB30 | 63 | 30 | FB | Input Shaft | - | On Request | €177.02 |
|
BGS63FB40 | 63 | 40 | FB | Input Shaft | - | On Request | €177.02 |
|
BGS63FB50 | 63 | 50 | FB | Input Shaft | - | On Request | €177.02 |
|
BGS63FB60 | 63 | 60 | FB | Input Shaft | - | On Request | €177.02 |
|
BGS63FB7.5 | 63 | 7.5 | FB | Input Shaft | - | On Request | €177.02 |
|
BGS63FB80 | 63 | 80 | FB | Input Shaft | - | On Request | €177.02 |
|
BGS63FC10 | 63 | 10 | FC | Input Shaft | - | On Request | €174.04 |
|
BGS63FC100 | 63 | 100 | FC | Input Shaft | - | On Request | €174.04 |
|
BGS63FC15 | 63 | 15 | FC | Input Shaft | - | On Request | €174.04 |
|
BGS63FC20 | 63 | 20 | FC | Input Shaft | - | 1-2 Days | €174.04 |
|
BGS63FC25 | 63 | 25 | FC | Input Shaft | - | On Request | €174.04 |
|
BGS63FC30 | 63 | 30 | FC | Input Shaft | - | On Request | €174.04 |
|
BGS63FC40 | 63 | 40 | FC | Input Shaft | - | On Request | €174.04 |
|
BGS63FC50 | 63 | 50 | FC | Input Shaft | - | On Request | €174.04 |
|
BGS63FC60 | 63 | 60 | FC | Input Shaft | - | On Request | €174.04 |
|
BGS63FC7.5 | 63 | 7.5 | FC | Input Shaft | - | On Request | €174.04 |
|
BGS63FC80 | 63 | 80 | FC | Input Shaft | - | On Request | €174.04 |
|
BGS63FD10 | 63 | 10 | FD | Input Shaft | - | On Request | €176.87 |
|
BGS63FD100 | 63 | 100 | FD | Input Shaft | - | On Request | €176.87 |
|
BGS63FD15 | 63 | 15 | FD | Input Shaft | - | On Request | €176.87 |
|
BGS63FD20 | 63 | 20 | FD | Input Shaft | - | 1-2 Days | €176.87 |
|
BGS63FD25 | 63 | 25 | FD | Input Shaft | - | On Request | €176.87 |
|
BGS63FD30 | 63 | 30 | FD | Input Shaft | - | On Request | €176.87 |
|
BGS63FD40 | 63 | 40 | FD | Input Shaft | - | On Request | €176.87 |
|
BGS63FD50 | 63 | 50 | FD | Input Shaft | - | On Request | €176.87 |
|
BGS63FD60 | 63 | 60 | FD | Input Shaft | - | On Request | €176.87 |
|
BGS63FD7.5 | 63 | 7.5 | FD | Input Shaft | - | On Request | €176.87 |
|
BGS63FD80 | 63 | 80 | FD | Input Shaft | - | On Request | €176.87 |
|
BGS63FE10 | 63 | 10 | FE | Input Shaft | - | On Request | €184.26 |
|
BGS63FE100 | 63 | 100 | FE | Input Shaft | - | On Request | €184.26 |
|
BGS63FE15 | 63 | 15 | FE | Input Shaft | - | On Request | €184.26 |
|
BGS63FE20 | 63 | 20 | FE | Input Shaft | - | On Request | €184.26 |
|
BGS63FE25 | 63 | 25 | FE | Input Shaft | - | On Request | €184.26 |
|
BGS63FE30 | 63 | 30 | FE | Input Shaft | - | On Request | €184.26 |
|
BGS63FE40 | 63 | 40 | FE | Input Shaft | - | On Request | €184.26 |
|
BGS63FE50 | 63 | 50 | FE | Input Shaft | - | On Request | €184.26 |
|
BGS63FE60 | 63 | 60 | FE | Input Shaft | - | On Request | €184.26 |
|
BGS63FE7.5 | 63 | 7.5 | FE | Input Shaft | - | On Request | €184.26 |
|
BGS63FE80 | 63 | 80 | FE | Input Shaft | - | On Request | €184.26 |
|
BGS7510 | 75 | 10 | U | Input Shaft | - | On Request | €230.60 |
|
BGS75100 | 75 | 100 | U | Input Shaft | - | On Request | €230.60 |
|
BGS7515 | 75 | 15 | U | Input Shaft | - | On Request | €230.60 |
|
BGS7520 | 75 | 20 | U | Input Shaft | - | On Request | €230.60 |
|
BGS7525 | 75 | 25 | U | Input Shaft | - | On Request | €230.60 |
|
BGS7530 | 75 | 30 | U | Input Shaft | - | On Request | €230.60 |
|
BGS7540 | 75 | 40 | U | Input Shaft | - | On Request | €230.60 |
|
BGS7550 | 75 | 50 | U | Input Shaft | - | On Request | €230.60 |
|
BGS7560 | 75 | 60 | U | Input Shaft | - | On Request | €230.60 |
|
BGS757.5 | 75 | 7.5 | U | Input Shaft | - | On Request | €230.60 |
|
BGS7580 | 75 | 80 | U | Input Shaft | - | On Request | €230.60 |
|
BGS75FA10 | 75 | 10 | FA | Input Shaft | - | On Request | €248.21 |
|
BGS75FA100 | 75 | 100 | FA | Input Shaft | - | On Request | €248.21 |
|
BGS75FA15 | 75 | 15 | FA | Input Shaft | - | On Request | €248.21 |
|
BGS75FA20 | 75 | 20 | FA | Input Shaft | - | On Request | €248.21 |
|
BGS75FA25 | 75 | 25 | FA | Input Shaft | - | On Request | €248.21 |
|
BGS75FA30 | 75 | 30 | FA | Input Shaft | - | On Request | €248.21 |
|
BGS75FA40 | 75 | 40 | FA | Input Shaft | - | On Request | €248.21 |
|
BGS75FA50 | 75 | 50 | FA | Input Shaft | - | On Request | €248.21 |
|
BGS75FA60 | 75 | 60 | FA | Input Shaft | - | On Request | €248.21 |
|
BGS75FA7.5 | 75 | 7.5 | FA | Input Shaft | - | On Request | €248.21 |
|
BGS75FA80 | 75 | 80 | FA | Input Shaft | - | On Request | €248.21 |
|
BGS75FB10 | 75 | 10 | FB | Input Shaft | - | On Request | €254.01 |
|
BGS75FB100 | 75 | 100 | FB | Input Shaft | - | On Request | €254.01 |
|
BGS75FB15 | 75 | 15 | FB | Input Shaft | - | On Request | €254.01 |
|
BGS75FB20 | 75 | 20 | FB | Input Shaft | - | On Request | €254.01 |
|
BGS75FB25 | 75 | 25 | FB | Input Shaft | - | On Request | €254.01 |
|
BGS75FB30 | 75 | 30 | FB | Input Shaft | - | On Request | €254.01 |
|
BGS75FB40 | 75 | 40 | FB | Input Shaft | - | On Request | €254.01 |
|
BGS75FB50 | 75 | 50 | FB | Input Shaft | - | On Request | €254.01 |
|
BGS75FB60 | 75 | 60 | FB | Input Shaft | - | On Request | €254.01 |
|
BGS75FB7.5 | 75 | 10 | FB | Input Shaft | - | On Request | €254.01 |
|
BGS75FB80 | 75 | 80 | FB | Input Shaft | - | On Request | €254.01 |
|
BGS9010 | 90 | 10 | U | Input Shaft | - | On Request | €313.84 |
|
BGS90100 | 90 | 100 | U | Input Shaft | - | On Request | €313.84 |
|
BGS9015 | 90 | 15 | U | Input Shaft | - | On Request | €313.84 |
|
BGS9020 | 90 | 20 | U | Input Shaft | - | On Request | €313.84 |
|
BGS9025 | 90 | 25 | U | Input Shaft | - | On Request | €313.84 |
|
BGS9030 | 90 | 30 | U | Input Shaft | - | On Request | €313.84 |
|
BGS9040 | 90 | 40 | U | Input Shaft | - | On Request | €313.84 |
|
BGS9050 | 90 | 50 | U | Input Shaft | - | On Request | €313.84 |
|
BGS9060 | 90 | 60 | U | Input Shaft | - | On Request | €313.84 |
|
BGS907.5 | 90 | 7.5 | U | Input Shaft | - | On Request | €313.84 |
|
BGS9080 | 90 | 80 | U | Input Shaft | - | On Request | €313.84 |
|
BGS90FA10 | 90 | 10 | FA | Input Shaft | - | On Request | €335.02 |
|
BGS90FA100 | 90 | 100 | FA | Input Shaft | - | On Request | €335.02 |
|
BGS90FA15 | 90 | 15 | FA | Input Shaft | - | On Request | €335.02 |
|
BGS90FA20 | 90 | 20 | FA | Input Shaft | - | On Request | €335.02 |
|
BGS90FA25 | 90 | 25 | FA | Input Shaft | - | On Request | €335.02 |
|
BGS90FA30 | 90 | 30 | FA | Input Shaft | - | On Request | €335.02 |
|
BGS90FA40 | 90 | 40 | FA | Input Shaft | - | On Request | €335.02 |
|
BGS90FA50 | 90 | 50 | FA | Input Shaft | - | On Request | €335.02 |
|
BGS90FA60 | 90 | 60 | FA | Input Shaft | - | On Request | €335.02 |
|
BGS90FA7.5 | 90 | 7.5 | FA | Input Shaft | - | On Request | €335.02 |
|
BGS90FA80 | 90 | 80 | FA | Input Shaft | - | On Request | €335.02 |
|
BGS90FB10 | 90 | 10 | FA | Input Shaft | - | On Request | €359.81 |
|
BGS90FB100 | 90 | 100 | FA | Input Shaft | - | On Request | €359.81 |
|
BGS90FB15 | 90 | 15 | FA | Input Shaft | - | On Request | €359.81 |
|
BGS90FB20 | 90 | 20 | FA | Input Shaft | - | On Request | €359.81 |
|
BGS90FB25 | 90 | 25 | FA | Input Shaft | - | On Request | €359.81 |
|
BGS90FB30 | 90 | 30 | FA | Input Shaft | - | On Request | €359.81 |
|
BGS90FB40 | 90 | 40 | FA | Input Shaft | - | On Request | €359.81 |
|
BGS90FB50 | 90 | 50 | FA | Input Shaft | - | On Request | €359.81 |
|
BGS90FB60 | 90 | 60 | FA | Input Shaft | - | On Request | €359.81 |
|
BGS90FB7.5 | 90 | 7.5 | FA | Input Shaft | - | On Request | €359.81 |
|
BGS90FB80 | 90 | 80 | FA | Input Shaft | - | On Request | €359.81 |
|
BGS90FC10 | 90 | 10 | FA | Input Shaft | - | On Request | €344.64 |
|
BGS90FC100 | 90 | 100 | FA | Input Shaft | - | On Request | €344.64 |
|
BGS90FC15 | 90 | 15 | FA | Input Shaft | - | On Request | €344.64 |
|
BGS90FC20 | 90 | 20 | FA | Input Shaft | - | On Request | €344.64 |
|
BGS90FC25 | 90 | 25 | FA | Input Shaft | - | On Request | €344.64 |
|
BGS90FC30 | 90 | 30 | FA | Input Shaft | - | On Request | €344.64 |
|
BGS90FC40 | 90 | 40 | FA | Input Shaft | - | On Request | €344.64 |
|
BGS90FC50 | 90 | 50 | FA | Input Shaft | - | On Request | €344.64 |
|
BGS90FC60 | 90 | 60 | FA | Input Shaft | - | On Request | €344.64 |
|
BGS90FC7.5 | 90 | 7.5 | FA | Input Shaft | - | On Request | €344.64 |
|
BGS90FC80 | 90 | 80 | FA | Input Shaft | - | On Request | €344.64 |
|
BGS90FD10 | 90 | 10 | FA | Input Shaft | - | On Request | €363.43 |
|
BGS90FD100 | 90 | 100 | FA | Input Shaft | - | On Request | €363.43 |
|
BGS90FD15 | 90 | 15 | FA | Input Shaft | - | On Request | €363.43 |
|
BGS90FD20 | 90 | 20 | FA | Input Shaft | - | On Request | €363.43 |
|
BGS90FD25 | 90 | 25 | FA | Input Shaft | - | On Request | €363.43 |
|
BGS90FD30 | 90 | 30 | FA | Input Shaft | - | On Request | €363.43 |
|
BGS90FD40 | 90 | 40 | FA | Input Shaft | - | On Request | €363.43 |
|
BGS90FD50 | 90 | 50 | FA | Input Shaft | - | On Request | €363.43 |
|
BGS90FD60 | 90 | 60 | FA | Input Shaft | - | On Request | €363.43 |
|
BGS90FD7.5 | 90 | 7.5 | FA | Input Shaft | - | On Request | €363.43 |
|
BGS90FD80 | 90 | 80 | FA | Input Shaft | - | On Request | €363.43 |
|
Accessories
The optional accessories available for all series are the output flanges in compact or long version, the single or double solid output shaft and the torque arm. Accessories are usually requested not assembled on the main unit. If required, BERNATI can supply all accessories already assembled on the main unit, according to customer specification.
Recommendation
In compliance with the machine directive, gearboxes are considered components intended to be fitted into another component or machine and they cannot be placed in service until the machine it is built in is declared in conformity with machine directive 2006/42/CE.
Standard Specifications | |
Worm gearboxes | BGS Series | _Gearbox sizes from 025 to 150 _Output nominal Torque up to 1800Nm _Input motor power from 0,09 to 15kW _Aluminium alloy case sizes 025 to 090 _Cast iron case sizes 110 to 150 _Output Hollow shaft, with opcional solid shaft |
Mounting positions
