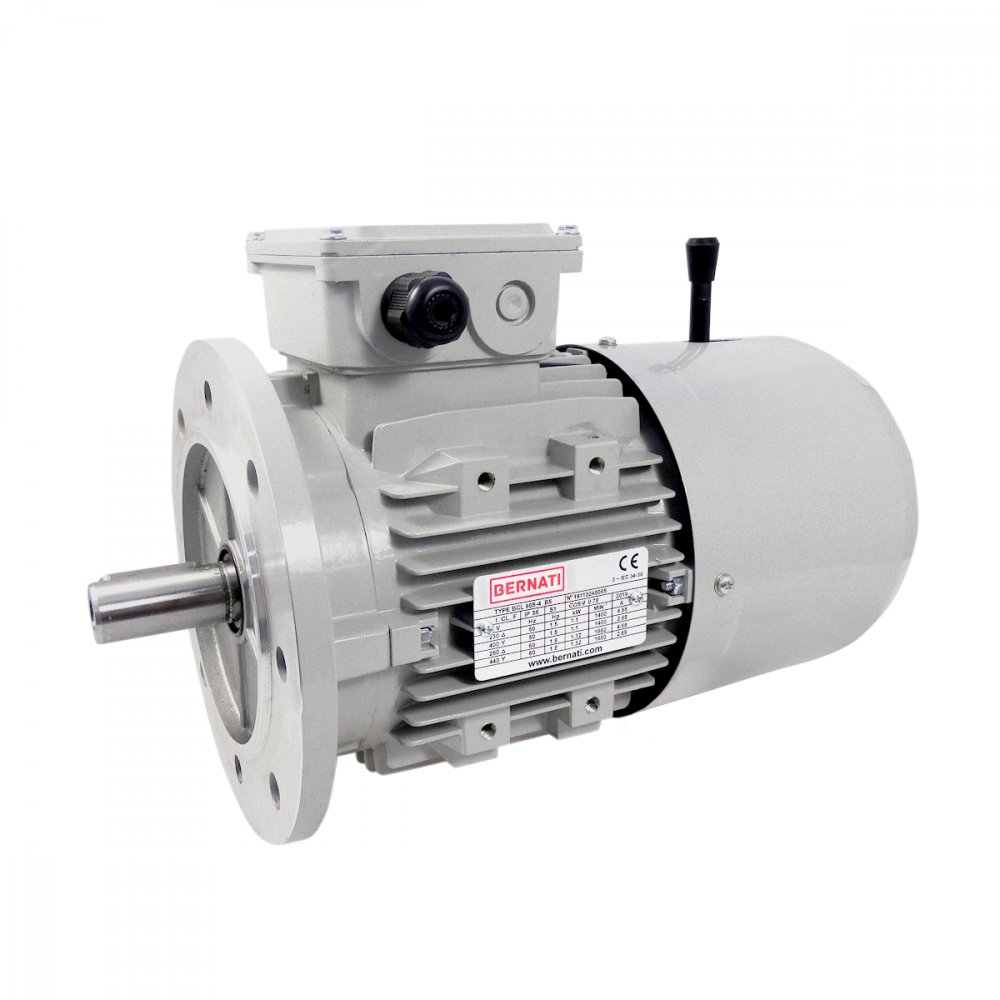

BCL 5.50kW Frame 132M 1000rpm B5 - Three Phase DC brake IEC Electric Motor
BCL Series - Three phase brake motors with aluminium frame, size from 63 to 160, output from 0.09kW to 18.50kW, with 2, 4 & 6 poles.
|Poles number / RPM||6/1000|
|Mounting Position||B5 (Flange)|
Bernati’s BCL three-phase motor with DC break unit is built within a cutting-edge technology, with a simple and robust design and in compliance with IEC standards. The BCL range results from coupling an asynchronous three-phase motor and an electromagnetic DC brake unit. These motors cover the product range with outputs from 0.18kW to 18.50kW in frame sizes IEC63 to IEC160L, in either 2,4 or 6 pole speeds. The aluminium cast ensures high resistance to corrosion and atmospheric attack, and has a much lighter weight when compared to cast iron frames.
Due to their reliability and operating safety, as well as their quick braking time (connection & disconnection time = 5~80 milliseconds) they are suitable for a great variety of applications, such as braking of loads or torques on the driving shaft, braking of rotating masses to reduce any lost-time, braking operations to increase the set-up precision, and braking of machine parts, according to safely rules.
These motors comply with the latest efficiency standards and requirements of IEC 60034-30-1;2014. They have a proven high quality, reliability and performance.
BCL | 3-phase, DC brake aluminium frame motor series
_Frame sizes: 63 to 160
_Power: 0.09kW to 18.50kW
_Poles: 2, 4, 6
_Squirrel-cage rotor motors with enclosed construction and external ventilation
_Insulation class F
_European directive ROHS 2002/95/CE
_Special voltage on request
_Ease to maintenance
