BVPC Worm gearboxes with integrated pre-stage and connection flange

BERNATI worm gearboxes are a high quality, modular solution for transforming power in the

required format (speed and torque) to drive any application.

All components use high quality materials:

  • Worm gear in hardened, alloy steel case;
  • Worm wheel in high resistance bronze;
  • Optimized gear profile for low noise operation;
  • Exterior housing in die cast aluminum, from size 030 to 090;
  • BV range with epoxy painting in RAL 9022;
  • Housing designed for versatile assembly and efficient heat dissipation;
  • Long life and high reliability of bearings and seals;



For sizes 030, 040 and 050 of the BV series, the gearbox housing has a round format that allows its use in very compact applications. This compact version can also be fitted with multi-position feet that increase the possibilities of fixing it to the machine. For all the other housings, this series has a square format that allows fixing in any position.

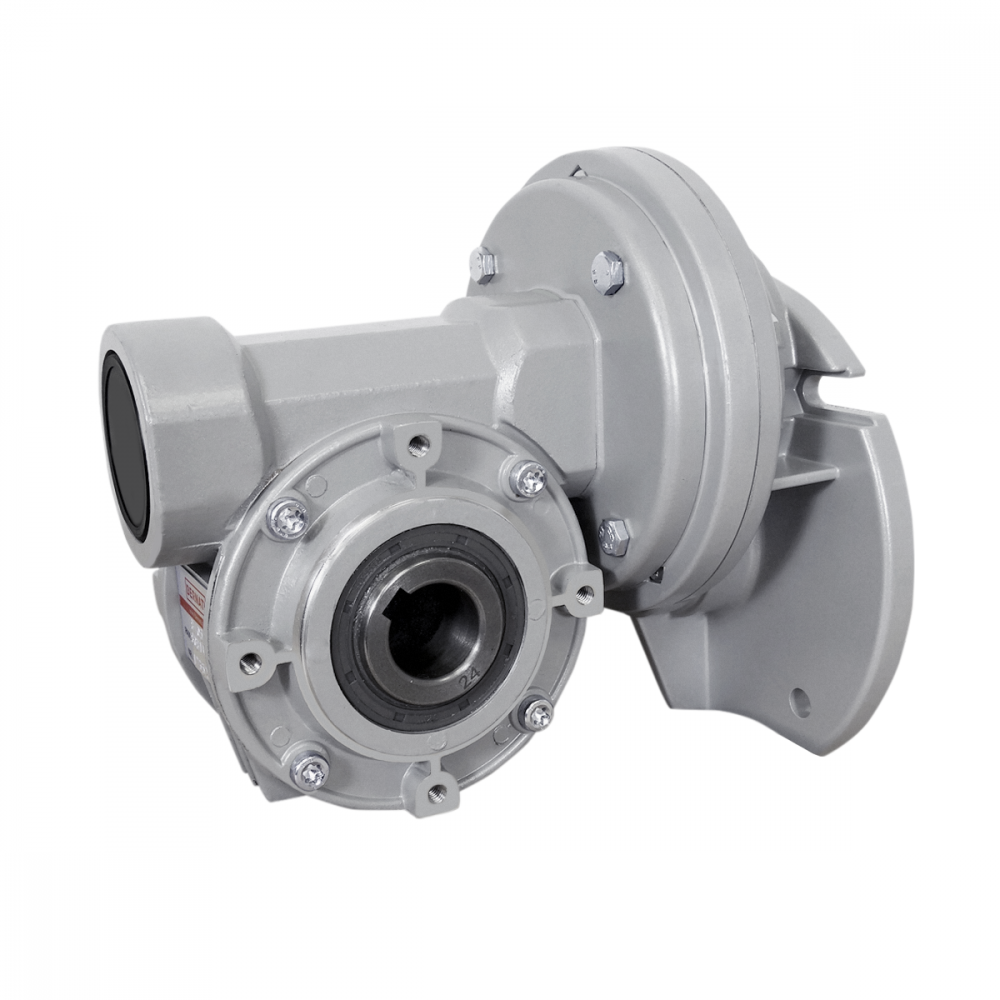

BVPC Type - Gearbox with integrated pre-stage and connection flange for IEC motors.

SKU Size Gear ratio Version Input Configuration PAM Shipped In Price *
BVPC63.40A105635 63/40 105 A IEC PAM 63B5 1-2 Days €318.95
BVPC63.40A138635 63/40 138 A IEC PAM 63B5 1-2 Days €319.30
BVPC63.40A180635 63/40 180 A IEC PAM 63B5 1-2 Days €319.30
BVPC63.40A210635 63/40 210 A IEC PAM 63B5 1-2 Days €319.30
BVPC63.40A300635 63/40 300 A IEC PAM 63B5 1-2 Days €319.30
BVPC63.40F105635 63/40 105 F IEC PAM 63B5 1-2 Days €307.34
BVPC63.40F138635 63/40 138 F IEC PAM 63B5 1-2 Days €307.69
BVPC63.40F180635 63/40 180 F IEC PAM 63B5 1-2 Days €307.69
BVPC63.40F210635 63/40 210 F IEC PAM 63B5 1-2 Days €307.69
BVPC63.40F300635 63/40 300 F IEC PAM 63B5 1-2 Days €307.69
BVPC63.40FA105635 63/40 105 FA IEC PAM 63B5 1-2 Days €310.12
BVPC63.40FA138635 63/40 138 FA IEC PAM 63B5 1-2 Days €310.47
BVPC63.40FA180635 63/40 180 FA IEC PAM 63B5 1-2 Days €310.47
BVPC63.40FA210635 63/40 210 FA IEC PAM 63B5 1-2 Days €310.47
BVPC63.40FA300635 63/40 300 FA IEC PAM 63B5 1-2 Days €310.47
BVPC63.40N105635 63/40 105 N IEC PAM 63B5 1-2 Days €318.95
BVPC63.40N138635 63/40 138 N IEC PAM 63B5 1-2 Days €319.30
BVPC63.40N180635 63/40 180 N IEC PAM 63B5 1-2 Days €319.30
BVPC63.40N210635 63/40 210 N IEC PAM 63B5 1-2 Days €319.30
BVPC63.40N300635 63/40 300 N IEC PAM 63B5 1-2 Days €319.30
BVPC63.40P105635 63/40 105 P IEC PAM 63B5 1-2 Days €295.44
BVPC63.40P138635 63/40 138 P IEC PAM 63B5 1-2 Days €295.79
BVPC63.40P180635 63/40 180 P IEC PAM 63B5 1-2 Days €295.79
BVPC63.40P210635 63/40 210 P IEC PAM 63B5 1-2 Days €295.79
BVPC63.40P300635 63/40 300 P IEC PAM 63B5 1-2 Days €295.79
BVPC63.40V105635 63/40 105 V IEC PAM 63B5 1-2 Days €318.95
BVPC63.40V138635 63/40 138 V IEC PAM 63B5 1-2 Days €319.30
BVPC63.40V180635 63/40 180 V IEC PAM 63B5 1-2 Days €319.30
BVPC63.40V210635 63/40 210 V IEC PAM 63B5 1-2 Days €319.30
BVPC63.40V300635 63/40 300 V IEC PAM 63B5 1-2 Days €319.30
BVPC63.50A108635 63/50 108 V IEC PAM 63B5 1-2 Days €355.48
BVPC63.50A135635 63/50 135 V IEC PAM 63B5 1-2 Days €355.48
BVPC63.50A180635 63/50 180 V IEC PAM 63B5 1-2 Days €355.48
BVPC63.50A210635 63/50 210 V IEC PAM 63B5 1-2 Days €356.03
BVPC63.50A240635 63/50 240 V IEC PAM 63B5 4-5 Days €356.03
BVPC63.50A300635 63/50 300 V IEC PAM 63B5 1-2 Days €356.03
BVPC63.50F108635 63/50 108 F IEC PAM 63B5 1-2 Days €340.45
BVPC63.50F135635 63/50 135 F IEC PAM 63B5 1-2 Days €340.45
BVPC63.50F180635 63/50 180 F IEC PAM 63B5 1-2 Days €340.45
BVPC63.50F210635 63/50 210 F IEC PAM 63B5 1-2 Days €341.00
BVPC63.50F240635 63/50 240 F IEC PAM 63B5 4-5 Days €341.00
BVPC63.50F300635 63/50 300 F IEC PAM 63B5 1-2 Days €341.00
BVPC63.50FA108635 63/50 108 FA IEC PAM 63B5 1-2 Days €342.09
BVPC63.50FA135635 63/50 135 FA IEC PAM 63B5 1-2 Days €342.09
BVPC63.50FA180635 63/50 180 FA IEC PAM 63B5 1-2 Days €342.09
BVPC63.50FA210635 63/50 210 FA IEC PAM 63B5 1-2 Days €342.64
BVPC63.50FA240635 63/50 240 FA IEC PAM 63B5 4-5 Days €342.64
BVPC63.50FA300635 63/50 300 FA IEC PAM 63B5 1-2 Days €342.64
BVPC63.50N108635 63/50 108 N IEC PAM 63B5 1-2 Days €355.48
BVPC63.50N135635 63/50 135 N IEC PAM 63B5 1-2 Days €355.48
BVPC63.50N180635 63/50 180 N IEC PAM 63B5 1-2 Days €355.48
BVPC63.50N210635 63/50 210 N IEC PAM 63B5 1-2 Days €356.03
BVPC63.50N240635 63/50 240 N IEC PAM 63B5 4-5 Days €356.03
BVPC63.50N300635 63/50 300 N IEC PAM 63B5 1-2 Days €356.03
BVPC63.50P108635 63/50 108 P IEC PAM 63B5 1-2 Days €325.77
BVPC63.50P135635 63/50 135 P IEC PAM 63B5 1-2 Days €325.77
BVPC63.50P180635 63/50 180 P IEC PAM 63B5 1-2 Days €325.77
BVPC63.50P210635 63/50 210 P IEC PAM 63B5 1-2 Days €326.32
BVPC63.50P240635 63/50 240 P IEC PAM 63B5 4-5 Days €326.32
BVPC63.50P300635 63/50 300 P IEC PAM 63B5 1-2 Days €326.32
BVPC63.50V108635 63/50 108 V IEC PAM 63B5 1-2 Days €355.48
BVPC63.50V135635 63/50 135 V IEC PAM 63B5 1-2 Days €355.48
BVPC63.50V180635 63/50 180 V IEC PAM 63B5 1-2 Days €355.48
BVPC63.50V210635 63/50 210 V IEC PAM 63B5 1-2 Days €356.03
BVPC63.50V240635 63/50 240 V IEC PAM 63B5 4-5 Days €356.03
BVPC63.50V300635 63/50 300 V IEC PAM 63B5 1-2 Days €356.03
BVPC71.50A108715 71/50 108 A IEC PAM 71B5 1-2 Days €368.58
BVPC71.50A135715 71/50 135 A IEC PAM 71B5 1-2 Days €368.58
BVPC71.50A84715 71/50 84 A IEC PAM 71B5 1-2 Days €368.53
BVPC71.50F108715 71/50 108 F IEC PAM 71B5 1-2 Days €353.55
BVPC71.50F135715 71/50 135 F IEC PAM 71B5 1-2 Days €353.55
BVPC71.50F84715 71/50 84 F IEC PAM 71B5 1-2 Days €353.50
BVPC71.50FA108715 71/50 108 FA IEC PAM 71B5 1-2 Days €355.19
BVPC71.50FA135715 71/50 135 FA IEC PAM 71B5 1-2 Days €355.19
BVPC71.50FA84715 71/50 84 FA IEC PAM 71B5 1-2 Days €355.14
BVPC71.50N108715 71/50 108 N IEC PAM 71B5 1-2 Days €368.58
BVPC71.50N135715 71/50 135 N IEC PAM 71B5 1-2 Days €368.58
BVPC71.50N84715 71/50 84 N IEC PAM 71B5 1-2 Days €368.53
BVPC71.50P108715 71/50 108 P IEC PAM 71B5 1-2 Days €338.87
BVPC71.50P135715 71/50 135 P IEC PAM 71B5 1-2 Days €338.87
BVPC71.50P84715 71/50 84 P IEC PAM 71B5 1-2 Days €338.82
BVPC71.50V108715 71/50 108 V IEC PAM 71B5 1-2 Days €368.58
BVPC71.50V135715 71/50 135 V IEC PAM 71B5 1-2 Days €368.58
BVPC71.50V84715 71/50 84 V IEC PAM 71B5 1-2 Days €368.53
BVPC71.63114715 71/50 114 U IEC PAM 71B5 1-2 Days €389.00
BVPC71.63135715 71/50 135 U IEC PAM 71B5 1-2 Days €369.61
BVPC71.63192715 71/50 192 U IEC PAM 71B5 4-5 Days €369.61
BVPC71.63240715 71/50 240 U IEC PAM 71B5 4-5 Days €373.23
BVPC71.63300715 71/50 300 U IEC PAM 71B5 1-2 Days €373.23
BVPC71.63F114715 71/50 114 F IEC PAM 71B5 1-2 Days €402.49
BVPC71.63F135715 71/50 135 F IEC PAM 71B5 1-2 Days €383.10
BVPC71.63F192715 71/50 192 F IEC PAM 71B5 4-5 Days €383.10
BVPC71.63F240715 71/50 240 F IEC PAM 71B5 4-5 Days €386.72
BVPC71.63F300715 71/50 300 F IEC PAM 71B5 1-2 Days €386.72
BVPC71.63FC114715 71/50 114 FC IEC PAM 71B5 1-2 Days €399.22
BVPC71.63FC135715 71/50 135 FC IEC PAM 71B5 1-2 Days €379.83
BVPC71.63FC192715 71/50 192 FC IEC PAM 71B5 4-5 Days €379.83
BVPC71.63FC240715 71/50 240 FC IEC PAM 71B5 4-5 Days €383.45
BVPC71.63FC300715 71/50 300 FC IEC PAM 71B5 1-2 Days €383.45
BVPC71.75120715 71/50 120 U IEC PAM 71B5 1-2 Days €454.83
BVPC71.75150715 71/50 150 U IEC PAM 71B5 4-5 Days €454.83
BVPC71.75180715 71/50 180 U IEC PAM 71B5 1-2 Days €433.16
BVPC71.75240715 71/50 240 U IEC PAM 71B5 4-5 Days €433.16
BVPC71.75300715 71/50 300 U IEC PAM 71B5 4-5 Days €433.16
BVPC71.75F120715 71/50 120 F IEC PAM 71B5 1-2 Days €476.20
BVPC71.75F150715 71/50 150 F IEC PAM 71B5 4-5 Days €476.20
BVPC71.75F180715 71/50 180 F IEC PAM 71B5 1-2 Days €454.53
BVPC71.75F240715 71/50 240 F IEC PAM 71B5 4-5 Days €454.53
BVPC71.75F300715 71/50 300 F IEC PAM 71B5 4-5 Days €454.53
BVPC71.75FC120715 71/50 120 FC IEC PAM 71B5 1-2 Days €471.10
BVPC71.75FC150715 71/50 150 FC IEC PAM 71B5 4-5 Days €471.10
BVPC71.75FC180715 71/50 180 FC IEC PAM 71B5 1-2 Days €449.43
BVPC71.75FC240715 71/50 240 FC IEC PAM 71B5 4-5 Days €449.43
BVPC71.75FC300715 71/50 300 FC IEC PAM 71B5 4-5 Days €449.43
BVPC71.75FE120715 71/50 120 FE IEC PAM 71B5 4-5 Days €493.16
BVPC71.75FE150715 71/50 150 FE IEC PAM 71B5 4-5 Days €493.16
BVPC71.75FE180715 71/50 180 FE IEC PAM 71B5 4-5 Days €471.49
BVPC71.75FE240715 71/50 240 FE IEC PAM 71B5 4-5 Days €471.49
BVPC71.75FE300715 71/50 300 FE IEC PAM 71B5 4-5 Days €471.49
BVPC71.90168715 71/50 168 U IEC PAM 71B5 4-5 Days €550.20
BVPC71.90192715 71/50 192 U IEC PAM 71B5 1-2 Days €550.20
BVPC71.90240715 71/50 240 U IEC PAM 71B5 1-2 Days €528.53
BVPC71.90300715 71/50 300 U IEC PAM 71B5 1-2 Days €528.53
BVPC71.90F168715 71/50 168 F IEC PAM 71B5 4-5 Days €576.19
BVPC71.90F192715 71/50 192 F IEC PAM 71B5 1-2 Days €576.19
BVPC71.90F240715 71/50 240 F IEC PAM 71B5 1-2 Days €554.52
BVPC71.90F300715 71/50 300 F IEC PAM 71B5 1-2 Days €554.52
BVPC71.90FC168715 71/50 168 FC IEC PAM 71B5 4-5 Days €573.41
BVPC71.90FC192715 71/50 192 FC IEC PAM 71B5 1-2 Days €573.41
BVPC71.90FC240715 71/50 240 FC IEC PAM 71B5 1-2 Days €551.74
BVPC71.90FC300715 71/50 300 FC IEC PAM 71B5 1-2 Days €551.74
BVPC80.75120805 80/75 120 U IEC PAM 80B5 4-5 Days €519.15
BVPC80.75150805 80/75 150 U IEC PAM 80B5 4-5 Days €519.15
BVPC80.7590805 80/75 90 U IEC PAM 80B5 4-5 Days €519.15
BVPC80.75F120805 80/75 120 F IEC PAM 80B5 4-5 Days €540.52
BVPC80.75F150805 80/75 150 F IEC PAM 80B5 4-5 Days €540.52
BVPC80.75F90805 80/75 90 F IEC PAM 80B5 4-5 Days €540.52
BVPC80.75FC120805 80/75 120 F IEC PAM 80B5 4-5 Days €535.42
BVPC80.75FC150805 80/75 150 F IEC PAM 80B5 4-5 Days €535.42
BVPC80.75FC90805 80/75 90 F IEC PAM 80B5 4-5 Days €535.42
BVPC80.75FE120805 80/75 120 FE IEC PAM 80B5 4-5 Days €557.48
BVPC80.75FE150805 80/75 150 FE IEC PAM 80B5 4-5 Days €557.48
BVPC80.75FE90805 80/75 90 FE IEC PAM 80B5 4-5 Days €557.48
BVPC80.90120805 80/90 120 U IEC PAM 80B5 4-5 Days €614.52
BVPC80.90138805 80/90 138 U IEC PAM 80B5 4-5 Days €614.52
BVPC80.90168805 80/90 168 U IEC PAM 80B5 4-5 Days €614.52
BVPC80.90192805 80/90 192 U IEC PAM 80B5 4-5 Days €614.52
BVPC80.90240805 80/90 240 U IEC PAM 80B5 4-5 Days €600.98
BVPC80.90F120805 80/90 120 F IEC PAM 80B5 4-5 Days €640.51
BVPC80.90F138805 80/90 138 F IEC PAM 80B5 4-5 Days €640.51
BVPC80.90F168805 80/90 168 F IEC PAM 80B5 4-5 Days €640.51
BVPC80.90F192805 80/90 192 F IEC PAM 80B5 4-5 Days €640.51
BVPC80.90F240805 80/90 240 F IEC PAM 80B5 4-5 Days €626.97
BVPC80.90FC120805 80/90 120 FC IEC PAM 80B5 4-5 Days €637.73
BVPC80.90FC138805 80/90 138 FC IEC PAM 80B5 4-5 Days €637.73
BVPC80.90FC168805 80/90 168 FC IEC PAM 80B5 4-5 Days €637.73
BVPC80.90FC192805 80/90 192 FC IEC PAM 80B5 4-5 Days €637.73
BVPC80.90FC240805 80/90 240 FC IEC PAM 80B5 4-5 Days €624.19
* Other prices are available for Manufacturers and Resellers, as well quantity-based discounts.
Note: Standard frame colour is grey RAL 9006 and RAL 7030. Occasionally, we reserve the right to deliver the products in other colours, like dark grey or blue.

Accessories

The optional accessories available for all series are the output flanges in compact or long version, the single or double solid output shaft and the torque arm. Accessories are usually requested not assembled on the main unit. If required, BERNATI can supply all accessories already assembled on the main unit, according to customer specification.

Recommendation

In compliance with the machine directive, gearboxes are considered components intended to be fitted into another component or machine and they cannot be placed in service until the machine it is built in is declared in conformity with machine directive 2006/42/CE.



Standard Specifications
Worm gearboxes | BVPC Series

_Gearbox sizes from 030 to 090

_Output nominal Torque up to 490Nm

_Input motor power from 0,09 to 4kW

_Round shape sizes 030 to 050

_Aluminium alloy cases

_Output Hollow shaft, with opcional solid shaft



Mounting positions

"
