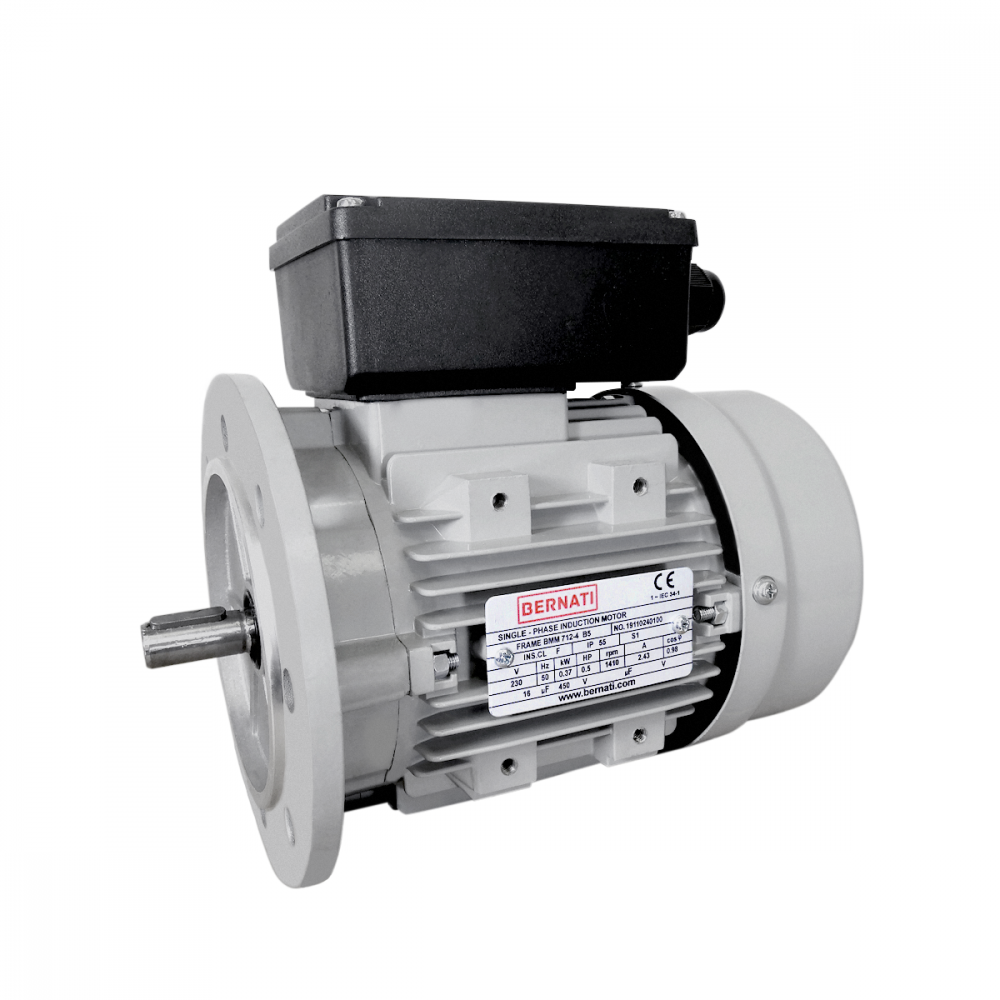

BMM 0.55kW Frame 80 1500rpm B5 - Single Phase IEC Electric Motor
BMM Series - Single phase motors with aluminium frame, size from 56 to 100, output from 0.09kW to 3.00kW, with 2, 4 & 6 poles.
|Poles number / RPM||4/1500|
|Mounting Position||B5 (Flange)|
Bernati’s BMM single-phase motor series is built within a cutting-edge technology, with a simple and robust design and in compliance with IEC standards. BMM aluminium housing single-phase capacitor-run asynchronous motors covers the product range with outputs from 0.09kW to 3.00kW in frame sizes IEC56 to IEC100L, in either 2,4 or 6 pole speeds. The aluminium cast ensures high resistance to corrosion and atmospheric attack, and has a much lighter weight when compared to cast iron frames.
BMM motors have good performance, safety and reliable operation, nice appearance, and can be maintained very conveniently, while with low noises, little vibration and at the same time of light weight and simple construction. The multiple of starting torque is 0.3~0.7.
These series motors are suitable for the occasion where there requirements of starting torque is low and long –term continuous woking, such as home electric appliances, pumps, fans and recording meters, ect.
These motors comply with the latest efficiency standards and requirements of IEC 60034-30-1;2014. They have a proven high quality, reliability and performance.
|BMM | Single-phase, aluminium frame motor series||
_Frame sizes: 56 to 100
_Power: 0.09kW to 3.00kW
_Poles: 2, 4, 6
_Squirrel-cage rotor motors with enclosed construction and external ventilation
_Insulation class F
_European directive ROHS 2002/95/CE
_Special voltage on request
_Ease to maintenance
