BGC Double Worm gearboxes with IEC input flange

BERNATI worm gearboxes are a high quality, modular solution for transforming power in the

required format (speed and torque) to drive any application.

All components use high quality materials:

  • Worm gear in hardened, alloy steel case;
  • Worm wheel in high resistance bronze;
  • Optimized gear profile for low noise operation;
  • Exterior housing in die cast aluminum, up to size 090;
  • Exterior housing in cast iron, for sizes 110 to 150;
  • BG range with epoxy painting in RAL 9006;
  • Housing designed for versatile assembly and efficient heat dissipation;
  • Long life and high reliability of bearings and seals;
  • Sizes 025 to 090 and pre-stages are lubricated for life with synthetic lubricant in the ideal quantity to allow a universal mounting position;
  • Sizes 110 to 150 are lubricated with mineral oil, in a quantity adequate for B3 assembly position and require a simple maintenance plan.
  • A série BG possui uma caixa com formato quadrangular, que permite a fixação em qualquer posição.

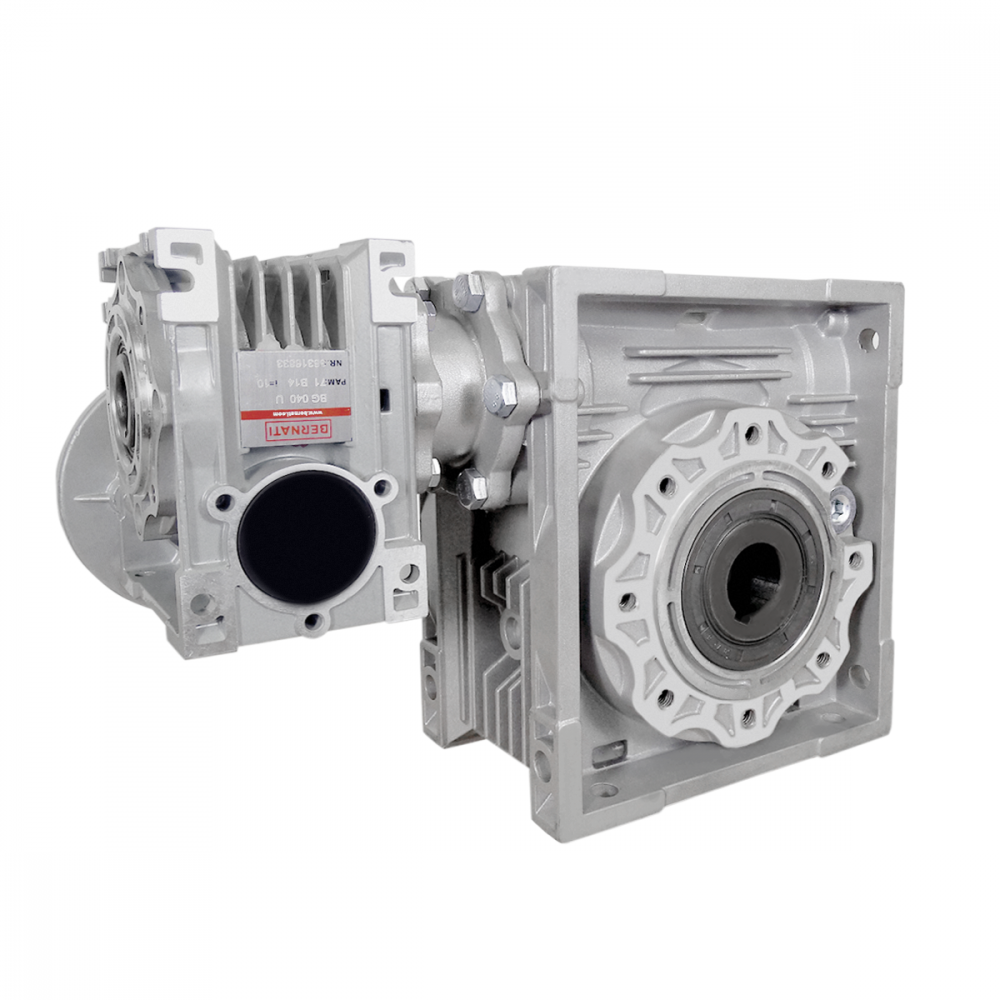

BGC Type - Double Worm gear configuration for extra high torque and low speed with flange for IEC motors or solid input shaft.

SKU Size Gear ratio Version Input Configuration PAM Shipped In Price *
BGC03004012005614 30/40 1200 U IEC PAM 56B14 1-2 Days €186.21
BGC03004015005614 30/40 1500 U IEC PAM 56B14 1-2 Days €186.21
BGC03004018005614 30/40 1800 U IEC PAM 56B14 1-2 Days €186.21
BGC03004024005614 30/40 2400 U IEC PAM 56B14 1-2 Days €186.21
BGC0300403005614 30/40 300 U IEC PAM 56B14 1-2 Days €186.21
BGC0300404005614 30/40 400 U IEC PAM 56B14 1-2 Days €186.21
BGC0300405005614 30/40 500 U IEC PAM 56B14 1-2 Days €186.21
BGC0300406005614 30/40 600 U IEC PAM 56B14 1-2 Days €186.21
BGC0300407505614 30/40 750 U IEC PAM 56B14 4-5 Days €186.21
BGC0300409005614 30/40 900 U IEC PAM 56B14 1-2 Days €186.21
BGC030040FA1200561 30/40 1200 FA IEC PAM 56B14 1-2 Days €193.90
BGC030040FA1500561 30/40 1500 FA IEC PAM 56B14 1-2 Days €193.90
BGC030040FA1800561 30/40 1800 FA IEC PAM 56B14 1-2 Days €193.90
BGC030040FA2400561 30/40 2400 FA IEC PAM 56B14 1-2 Days €193.90
BGC030040FA3005614 30/40 300 FA IEC PAM 56B14 1-2 Days €193.90
BGC030040FA4005614 30/40 400 FA IEC PAM 56B14 1-2 Days €193.90
BGC030040FA5005614 30/40 500 FA IEC PAM 56B14 1-2 Days €193.90
BGC030040FA6005614 30/40 600 FA IEC PAM 56B14 1-2 Days €193.90
BGC030040FA7505614 30/40 750 FA IEC PAM 56B14 4-5 Days €193.90
BGC030040FA9005614 30/40 900 FA IEC PAM 56B14 1-2 Days €193.90
BGC030040FB1200561 30/40 1200 FB IEC PAM 56B14 1-2 Days €198.36
BGC030040FB1500561 30/40 1500 FB IEC PAM 56B14 1-2 Days €198.36
BGC030040FB1800561 30/40 1800 FB IEC PAM 56B14 1-2 Days €198.36
BGC030040FB2400561 30/40 2400 FB IEC PAM 56B14 1-2 Days €198.36
BGC030040FB3005614 30/40 300 FB IEC PAM 56B14 1-2 Days €198.36
BGC030040FB4005614 30/40 400 FB IEC PAM 56B14 1-2 Days €198.36
BGC030040FB5005614 30/40 500 FB IEC PAM 56B14 1-2 Days €198.36
BGC030040FB6005614 30/40 600 FB IEC PAM 56B14 1-2 Days €198.36
BGC030040FB7505614 30/40 750 FB IEC PAM 56B14 4-5 Days €198.36
BGC030040FB9005614 30/40 900 FB IEC PAM 56B14 1-2 Days €198.36
BGC030040FC1200561 30/40 1200 FC IEC PAM 56B14 1-2 Days €195.24
BGC030040FC1500561 30/40 1500 FC IEC PAM 56B14 1-2 Days €195.24
BGC030040FC1800561 30/40 1800 FC IEC PAM 56B14 1-2 Days €195.24
BGC030040FC2400561 30/40 2400 FC IEC PAM 56B14 1-2 Days €195.24
BGC030040FC3005614 30/40 300 FC IEC PAM 56B14 1-2 Days €195.24
BGC030040FC4005614 30/40 400 FC IEC PAM 56B14 1-2 Days €195.24
BGC030040FC5005614 30/40 500 FC IEC PAM 56B14 1-2 Days €195.24
BGC030040FC6005614 30/40 600 FC IEC PAM 56B14 1-2 Days €195.24
BGC030040FC7505614 30/40 750 FC IEC PAM 56B14 4-5 Days €195.24
BGC030040FC9005614 30/40 900 FC IEC PAM 56B14 1-2 Days €195.24
BGC030040FD1200561 30/40 1200 FD IEC PAM 56B14 1-2 Days €197.47
BGC030040FD1500561 30/40 1500 FD IEC PAM 56B14 1-2 Days €197.47
BGC030040FD1800561 30/40 1800 FD IEC PAM 56B14 1-2 Days €197.47
BGC030040FD2400561 30/40 2400 FD IEC PAM 56B14 1-2 Days €197.47
BGC030040FD3005614 30/40 300 FD IEC PAM 56B14 1-2 Days €197.47
BGC030040FD4005614 30/40 400 FD IEC PAM 56B14 1-2 Days €197.47
BGC030040FD5005614 30/40 500 FD IEC PAM 56B14 1-2 Days €197.47
BGC030040FD6005614 30/40 600 FD IEC PAM 56B14 1-2 Days €197.47
BGC030040FD7505614 30/40 750 FD IEC PAM 56B14 4-5 Days €197.47
BGC030040FD9005614 30/40 900 FD IEC PAM 56B14 1-2 Days €197.47
BGC03005012005614 30/50 1200 U IEC PAM 56B14 1-2 Days €222.86
BGC03005015005614 30/50 1500 U IEC PAM 56B14 1-2 Days €222.86
BGC03005018005614 30/50 1800 U IEC PAM 56B14 1-2 Days €222.86
BGC03005024005614 30/50 2400 U IEC PAM 56B14 1-2 Days €222.86
BGC0300503005614 30/50 300 U IEC PAM 56B14 1-2 Days €222.86
BGC0300504005614 30/50 400 U IEC PAM 56B14 1-2 Days €222.86
BGC0300505005614 30/50 500 U IEC PAM 56B14 1-2 Days €222.86
BGC0300506005614 30/50 600 U IEC PAM 56B14 1-2 Days €222.86
BGC0300507505614 30/50 750 U IEC PAM 56B14 4-5 Days €222.86
BGC0300509005614 30/50 900 U IEC PAM 56B14 1-2 Days €222.86
BGC030050FA1200561 30/50 1200 FA IEC PAM 56B14 1-2 Days €231.44
BGC030050FA1500561 30/50 1500 FA IEC PAM 56B14 1-2 Days €231.44
BGC030050FA1800561 30/50 1800 FA IEC PAM 56B14 1-2 Days €231.44
BGC030050FA2400561 30/50 2400 FA IEC PAM 56B14 1-2 Days €231.44
BGC030050FA3006314 30/50 300 FA IEC PAM 63B14 1-2 Days €231.44
BGC030050FA4006314 30/50 400 FA IEC PAM 63B14 1-2 Days €231.44
BGC030050FA5005614 30/50 500 FA IEC PAM 56B14 1-2 Days €231.44
BGC030050FA6005614 30/50 600 FA IEC PAM 56B14 1-2 Days €231.44
BGC030050FA7505614 30/50 750 FA IEC PAM 56B14 4-5 Days €231.44
BGC030050FA9005614 30/50 900 FA IEC PAM 56B14 1-2 Days €231.44
BGC030050FB1200561 30/50 1200 FB IEC PAM 56B14 1-2 Days €236.35
BGC030050FB1500561 30/50 1500 FB IEC PAM 56B14 1-2 Days €236.35
BGC030050FB1800561 30/50 1800 FB IEC PAM 56B14 1-2 Days €236.35
BGC030050FB2400561 30/50 2400 FB IEC PAM 56B14 1-2 Days €236.35
BGC030050FB3006314 30/50 300 FB IEC PAM 63B14 1-2 Days €236.35
BGC030050FB4006314 30/50 400 FB IEC PAM 63B14 1-2 Days €236.35
BGC030050FB5005614 30/50 500 FB IEC PAM 56B14 1-2 Days €236.35
BGC030050FB6005614 30/50 600 FB IEC PAM 56B14 1-2 Days €236.35
BGC030050FB7505614 30/50 750 FB IEC PAM 56B14 4-5 Days €236.35
BGC030050FB9005614 30/50 900 FB IEC PAM 56B14 1-2 Days €236.35
BGC030050FC1200561 30/50 1200 FC IEC PAM 56B14 1-2 Days €232.33
BGC030050FC1500561 30/50 1500 FC IEC PAM 56B14 1-2 Days €232.33
BGC030050FC1800561 30/50 1800 FC IEC PAM 56B14 1-2 Days €232.33
BGC030050FC2400561 30/50 2400 FC IEC PAM 56B14 1-2 Days €232.33
BGC030050FC3006314 30/50 300 FC IEC PAM 63B14 1-2 Days €232.33
BGC030050FC4006314 30/50 400 FC IEC PAM 63B14 1-2 Days €232.33
BGC030050FC5005614 30/50 500 FC IEC PAM 56B14 1-2 Days €232.33
BGC030050FC6005614 30/50 600 FC IEC PAM 56B14 1-2 Days €232.33
BGC030050FC7505614 30/50 750 FC IEC PAM 56B14 4-5 Days €232.33
BGC030050FC9005614 30/50 900 FC IEC PAM 56B14 1-2 Days €232.33
BGC030050FD1200561 30/50 1200 FD IEC PAM 56B14 1-2 Days €240.91
BGC030050FD1500561 30/50 1500 FD IEC PAM 56B14 1-2 Days €240.91
BGC030050FD1800561 30/50 1800 FD IEC PAM 56B14 1-2 Days €240.91
BGC030050FD2400561 30/50 2400 FD IEC PAM 56B14 1-2 Days €240.91
BGC030050FD3006314 30/50 300 FD IEC PAM 63B14 1-2 Days €240.91
BGC030050FD4006314 30/50 400 FD IEC PAM 63B14 1-2 Days €240.91
BGC030050FD5005614 30/50 500 FD IEC PAM 56B14 1-2 Days €240.91
BGC030050FD6005614 30/50 600 FD IEC PAM 56B14 1-2 Days €240.91
BGC030050FD7505614 30/50 750 FD IEC PAM 56B14 4-5 Days €240.91
BGC030050FD9005614 30/50 900 FD IEC PAM 56B14 1-2 Days €240.91
BGC03006312005614 30/63 1200 U IEC PAM 56B14 1-2 Days €265.07
BGC03006315005614 30/63 1500 U IEC PAM 56B14 1-2 Days €265.07
BGC03006318005614 30/63 1800 U IEC PAM 56B14 1-2 Days €265.07
BGC03006324005614 30/63 2400 U IEC PAM 56B14 1-2 Days €265.07
BGC0300633006314 30/63 300 U IEC PAM 63B14 1-2 Days €265.07
BGC0300634006314 30/63 400 U IEC PAM 63B14 1-2 Days €265.07
BGC0300635006314 30/63 500 U IEC PAM 63B14 1-2 Days €265.07
BGC0300636006314 30/63 600 U IEC PAM 63B14 1-2 Days €265.07
BGC0300637506314 30/63 750 U IEC PAM 63B14 1-2 Days €265.07
BGC0300639005614 30/63 900 U IEC PAM 56B14 1-2 Days €265.07
BGC030063FA1200561 30/63 1200 FA IEC PAM 56B14 1-2 Days €275.88
BGC030063FA1500561 30/63 1500 FA IEC PAM 56B14 1-2 Days €275.88
BGC030063FA1800561 30/63 1800 FA IEC PAM 56B14 1-2 Days €275.88
BGC030063FA2400561 30/63 2400 FA IEC PAM 56B14 1-2 Days €275.88
BGC030063FA3006314 30/63 300 FA IEC PAM 63B14 1-2 Days €275.88
BGC030063FA4006314 30/63 400 FA IEC PAM 63B14 1-2 Days €275.88
BGC030063FA5006314 30/63 500 FA IEC PAM 63B14 1-2 Days €275.88
BGC030063FA6006314 30/63 600 FA IEC PAM 63B14 1-2 Days €275.88
BGC030063FA7506314 30/63 750 FA IEC PAM 63B14 1-2 Days €275.88
BGC030063FA9005614 30/63 900 FA IEC PAM 56B14 1-2 Days €275.88
BGC030063FB1200561 30/63 1200 FB IEC PAM 56B14 1-2 Days €280.84
BGC030063FB1500561 30/63 1500 FB IEC PAM 56B14 1-2 Days €280.84
BGC030063FB1800561 30/63 1800 FB IEC PAM 56B14 1-2 Days €280.84
BGC030063FB2400561 30/63 2400 FB IEC PAM 56B14 1-2 Days €280.84
BGC030063FB3006314 30/63 300 FB IEC PAM 63B14 1-2 Days €280.84
BGC030063FB4006314 30/63 400 FB IEC PAM 63B14 1-2 Days €280.84
BGC030063FB5006314 30/63 500 FB IEC PAM 63B14 1-2 Days €280.84
BGC030063FB6006314 30/63 600 FB IEC PAM 63B14 1-2 Days €280.84
BGC030063FB7506314 30/63 750 FB IEC PAM 63B14 1-2 Days €280.84
BGC030063FB9005614 30/63 900 FB IEC PAM 56B14 1-2 Days €280.84
BGC030063FC1200561 30/63 1200 FC IEC PAM 56B14 1-2 Days €277.86
BGC030063FC1500561 30/63 1500 FC IEC PAM 56B14 1-2 Days €277.86
BGC030063FC1800561 30/63 1800 FC IEC PAM 56B14 1-2 Days €277.86
BGC030063FC2400561 30/63 2400 FC IEC PAM 56B14 1-2 Days €277.86
BGC030063FC3006314 30/63 300 FC IEC PAM 63B14 1-2 Days €277.86
BGC030063FC4006314 30/63 400 FC IEC PAM 63B14 1-2 Days €277.86
BGC030063FC5006314 30/63 500 FC IEC PAM 63B14 1-2 Days €277.86
BGC030063FC6006314 30/63 600 FC IEC PAM 63B14 1-2 Days €277.86
BGC030063FC7506314 30/63 750 FC IEC PAM 63B14 1-2 Days €277.86
BGC030063FC9005614 30/63 900 FC IEC PAM 56B14 1-2 Days €277.86
BGC030063FD1200561 30/63 1200 FD IEC PAM 56B14 1-2 Days €280.69
BGC030063FD1500561 30/63 1500 FD IEC PAM 56B14 1-2 Days €280.69
BGC030063FD1800561 30/63 1800 FD IEC PAM 56B14 1-2 Days €280.69
BGC030063FD2400561 30/63 2400 FD IEC PAM 56B14 1-2 Days €280.69
BGC030063FD3006314 30/63 300 FD IEC PAM 63B14 1-2 Days €280.69
BGC030063FD4006314 30/63 400 FD IEC PAM 63B14 1-2 Days €280.69
BGC030063FD5006314 30/63 500 FD IEC PAM 63B14 1-2 Days €280.69
BGC030063FD6006314 30/63 600 FD IEC PAM 63B14 1-2 Days €280.69
BGC030063FD7506314 30/63 750 FD IEC PAM 63B14 1-2 Days €280.69
BGC030063FD9005614 30/63 900 FD IEC PAM 56B14 1-2 Days €280.69
BGC030063FE1200561 30/63 1200 FE IEC PAM 56B14 1-2 Days €288.08
BGC030063FE1500561 30/63 1500 FE IEC PAM 56B14 1-2 Days €288.08
BGC030063FE1800561 30/63 1800 FE IEC PAM 56B14 1-2 Days €288.08
BGC030063FE2400561 30/63 2400 FE IEC PAM 56B14 1-2 Days €288.08
BGC030063FE3006314 30/63 300 FE IEC PAM 63B14 1-2 Days €288.08
BGC030063FE4006314 30/63 400 FE IEC PAM 63B14 1-2 Days €288.08
BGC030063FE5006314 30/63 500 FE IEC PAM 63B14 1-2 Days €288.08
BGC030063FE6006314 30/63 600 FE IEC PAM 63B14 1-2 Days €288.08
BGC030063FE7506314 30/63 750 FE IEC PAM 63B14 1-2 Days €288.08
BGC030063FE9005614 30/63 900 FE IEC PAM 56B14 1-2 Days €288.08
BGC04007512006314 40/75 1200 U IEC PAM 63B14 1-2 Days €349.89
BGC0400751500565 40/75 1500 U IEC PAM 56B5 4-5 Days €349.89
BGC0400751800565 40/75 1800 U IEC PAM 56B5 4-5 Days €349.89
BGC0400752400565 40/75 2400 U IEC PAM 56B5 4-5 Days €349.89
BGC0400753007114 40/75 300 U IEC PAM 71B14 1-2 Days €349.89
BGC0400754007114 40/75 400 U IEC PAM 71B14 1-2 Days €349.89
BGC0400755007114 40/75 500 U IEC PAM 71B14 1-2 Days €349.89
BGC0400756006314 40/75 600 U IEC PAM 63B14 1-2 Days €349.89
BGC0400757506314 40/75 750 U IEC PAM 63B14 1-2 Days €349.89
BGC0400759006314 40/75 900 U IEC PAM 63B14 1-2 Days €349.89
BGC040075FA1200631 40/75 1200 FA IEC PAM 63B14 1-2 Days €367.50
BGC040075FA3007114 40/75 300 FA IEC PAM 71B14 1-2 Days €367.50
BGC040075FA4007114 40/75 400 FA IEC PAM 71B14 1-2 Days €367.50
BGC040075FA5007114 40/75 500 FA IEC PAM 71B14 1-2 Days €367.50
BGC040075FA6006314 40/75 600 FA IEC PAM 63B14 1-2 Days €367.50
BGC040075FA7506314 40/75 750 FA IEC PAM 63B14 1-2 Days €367.50
BGC040075FA9006314 40/75 900 FA IEC PAM 63B14 1-2 Days €367.50
BGC040075FB1200631 40/75 1200 FB IEC PAM 63B14 1-2 Days €373.30
BGC040075FB3007114 40/75 300 FB IEC PAM 71B14 1-2 Days €373.30
BGC040075FB4007114 40/75 400 FB IEC PAM 71B14 1-2 Days €373.30
BGC040075FB5007114 40/75 500 FB IEC PAM 71B14 1-2 Days €373.30
BGC040075FB6006314 40/75 600 FB IEC PAM 63B14 1-2 Days €373.30
BGC040075FB7506314 40/75 750 FB IEC PAM 63B14 1-2 Days €373.30
BGC040075FB9006314 40/75 900 FB IEC PAM 63B14 1-2 Days €373.30
BGC04009012006314 40/90 1200 U IEC PAM 63B14 1-2 Days €433.13
BGC04009015006314 40/90 1500 U IEC PAM 63B14 1-2 Days €433.13
BGC04009018006314 40/90 1800 U IEC PAM 63B14 1-2 Days €433.13
BGC04009024006314 40/90 2400 U IEC PAM 63B14 1-2 Days €433.13
BGC0400903007114 40/90 300 U IEC PAM 71B14 1-2 Days €433.13
BGC0400904007114 40/90 400 U IEC PAM 71B14 1-2 Days €433.13
BGC0400905007114 40/90 500 U IEC PAM 71B14 1-2 Days €433.13
BGC0400906007114 40/90 600 U IEC PAM 71B14 1-2 Days €433.13
BGC0400907507114 40/90 750 U IEC PAM 71B14 1-2 Days €433.13
BGC0400909007114 40/90 900 U IEC PAM 71B14 1-2 Days €433.13
BGC040090FA1200631 40/90 1200 FA IEC PAM 63B14 1-2 Days €454.31
BGC040090FA1500631 40/90 1500 FA IEC PAM 63B14 1-2 Days €454.31
BGC040090FA1800631 40/90 1800 FA IEC PAM 63B14 1-2 Days €454.31
BGC040090FA2400631 40/90 2400 FA IEC PAM 63B14 1-2 Days €454.31
BGC040090FA3007114 40/90 300 FA IEC PAM 71B14 1-2 Days €454.31
BGC040090FA4007114 40/90 400 FA IEC PAM 71B14 1-2 Days €454.31
BGC040090FA5007114 40/90 500 FA IEC PAM 71B14 1-2 Days €454.31
BGC040090FA6007114 40/90 600 FA IEC PAM 71B14 1-2 Days €454.31
BGC040090FA7507114 40/90 750 FA IEC PAM 71B14 1-2 Days €454.31
BGC040090FA9007114 40/90 900 FA IEC PAM 71B14 1-2 Days €454.31
BGC040090FB1200631 40/90 1200 FB IEC PAM 63B14 1-2 Days €479.10
BGC040090FB1500631 40/90 1500 FB IEC PAM 63B14 1-2 Days €479.10
BGC040090FB1800631 40/90 1800 FB IEC PAM 63B14 1-2 Days €479.10
BGC040090FB2400631 40/90 2400 FB IEC PAM 63B14 1-2 Days €479.10
BGC040090FB3007114 40/90 300 FB IEC PAM 71B14 1-2 Days €479.10
BGC040090FB4007114 40/90 400 FB IEC PAM 71B14 1-2 Days €479.10
BGC040090FB5007114 40/90 500 FB IEC PAM 71B14 1-2 Days €479.10
BGC040090FB6007114 40/90 600 FB IEC PAM 71B14 1-2 Days €479.10
BGC040090FB7507114 40/90 750 FB IEC PAM 71B14 1-2 Days €479.10
BGC040090FB9007114 40/90 900 FB IEC PAM 71B14 1-2 Days €479.10
BGC040090FC1200631 40/90 1200 FC IEC PAM 63B14 1-2 Days €463.93
BGC040090FC1500631 40/90 1500 FC IEC PAM 63B14 1-2 Days €463.93
BGC040090FC1800631 40/90 1800 FC IEC PAM 63B14 1-2 Days €463.93
BGC040090FC2400631 40/90 2400 FC IEC PAM 63B14 1-2 Days €463.93
BGC040090FC3007114 40/90 300 FC IEC PAM 71B14 1-2 Days €463.93
BGC040090FC4007114 40/90 400 FC IEC PAM 71B14 1-2 Days €463.93
BGC040090FC5007114 40/90 500 FC IEC PAM 71B14 1-2 Days €463.93
BGC040090FC6007114 40/90 600 FC IEC PAM 71B14 1-2 Days €463.93
BGC040090FC7507114 40/90 750 FC IEC PAM 71B14 1-2 Days €463.93
BGC040090FC9007114 40/90 900 FC IEC PAM 71B14 1-2 Days €463.93
BGC040090FD1200631 40/90 1200 FD IEC PAM 63B14 1-2 Days €482.72
BGC040090FD1500631 40/90 1500 FD IEC PAM 63B14 1-2 Days €482.72
BGC040090FD1800631 40/90 1800 FD IEC PAM 63B14 1-2 Days €482.72
BGC040090FD2400631 40/90 2400 FD IEC PAM 63B14 1-2 Days €482.72
BGC040090FD3007114 40/90 300 FD IEC PAM 71B14 1-2 Days €482.72
BGC040090FD4007114 40/90 400 FD IEC PAM 71B14 1-2 Days €482.72
BGC040090FD5007114 40/90 500 FD IEC PAM 71B14 1-2 Days €482.72
BGC040090FD6007114 40/90 600 FD IEC PAM 71B14 1-2 Days €482.72
BGC040090FD7507114 40/90 750 FD IEC PAM 71B14 1-2 Days €482.72
BGC040090FD9007114 40/90 900 FD IEC PAM 71B14 1-2 Days €482.72
BGC05011012007114 50/110 1200 U IEC PAM 71B14 1-2 Days €666.82
BGC05011015007114 50/110 1500 U IEC PAM 71B14 1-2 Days €666.82
BGC05011018007114 50/110 1800 U IEC PAM 71B14 1-2 Days €666.82
BGC05011024006314 50/110 2400 U IEC PAM 63B14 1-2 Days €666.82
BGC0501103008014 50/110 300 U IEC PAM 80B14 1-2 Days €666.82
BGC0501104008014 50/110 400 U IEC PAM 80B14 1-2 Days €666.82
BGC0501105008014 50/110 500 U IEC PAM 80B14 4-5 Days €666.82
BGC0501106008014 50/110 600 U IEC PAM 80B14 1-2 Days €666.82
BGC0501107508014 50/110 750 U IEC PAM 80B14 1-2 Days €666.82
BGC0501109007114 50/110 900 U IEC PAM 71B14 1-2 Days €666.82
BGC050110FA1200711 50/110 1200 FA IEC PAM 71B14 1-2 Days €724.10
BGC050110FA1500711 50/110 1500 FA IEC PAM 71B14 1-2 Days €724.10
BGC050110FA1800711 50/110 1800 FA IEC PAM 71B14 1-2 Days €724.10
BGC050110FA2400631 50/110 2400 FA IEC PAM 63B14 1-2 Days €724.10
BGC050110FA3008014 50/110 300 FA IEC PAM 80B14 1-2 Days €724.10
BGC050110FA4008014 50/110 400 FA IEC PAM 80B14 1-2 Days €724.10
BGC050110FA5008014 50/110 500 FA IEC PAM 80B14 4-5 Days €724.10
BGC050110FA6008014 50/110 600 FA IEC PAM 80B14 1-2 Days €724.10
BGC050110FA7508014 50/110 750 FA IEC PAM 80B14 1-2 Days €724.10
BGC050110FA9007114 50/110 900 FA IEC PAM 71B14 1-2 Days €724.10
BGC050110FB1200711 50/110 1200 FB IEC PAM 71B14 1-2 Days €742.55
BGC050110FB1500711 50/110 1500 FB IEC PAM 71B14 1-2 Days €742.55
BGC050110FB1800711 50/110 1800 FB IEC PAM 71B14 1-2 Days €742.55
BGC050110FB2400631 50/110 2400 FB IEC PAM 63B14 1-2 Days €742.55
BGC050110FB3008014 50/110 300 FB IEC PAM 80B14 1-2 Days €742.55
BGC050110FB4008014 50/110 400 FB IEC PAM 80B14 1-2 Days €742.55
BGC050110FB5008014 50/110 500 FB IEC PAM 80B14 4-5 Days €742.55
BGC050110FB6008014 50/110 600 FB IEC PAM 80B14 1-2 Days €742.55
BGC050110FB7508014 50/110 750 FB IEC PAM 80B14 1-2 Days €742.55
BGC050110FB9007114 50/110 900 FB IEC PAM 71B14 1-2 Days €742.55
BGC06313012008014 63/130 1200 U IEC PAM 80B14 4-5 Days €874.08
BGC06313015007114 63/130 1500 U IEC PAM 71B14 4-5 Days €874.08
BGC06313018007114 63/130 1800 U IEC PAM 71B14 1-2 Days €874.08
BGC06313024007114 63/130 2400 U IEC PAM 71B14 4-5 Days €874.08
BGC0631303009014 63/130 300 U IEC PAM 90B14 4-5 Days €874.08
BGC0631304009014 63/130 400 U IEC PAM 90B14 4-5 Days €874.08
BGC0631305009014 63/130 500 U IEC PAM 90B14 4-5 Days €874.08
BGC0631306008014 63/130 600 U IEC PAM 80B14 4-5 Days €874.08
BGC0631307508014 63/130 750 U IEC PAM 80B14 1-2 Days €874.08
BGC0631309008014 63/130 900 U IEC PAM 80B14 1-2 Days €874.08
BGC063130FA1200801 63/130 1200 FA IEC PAM 80B14 4-5 Days €950.25
BGC063130FA1500711 63/130 1500 FA IEC PAM 71B14 4-5 Days €950.25
BGC063130FA1800711 63/130 1800 FA IEC PAM 71B14 1-2 Days €950.25
BGC063130FA2400711 63/130 2400 FA IEC PAM 71B14 4-5 Days €950.25
BGC063130FA3009014 63/130 300 FA IEC PAM 90B14 4-5 Days €950.25
BGC063130FA4009014 63/130 400 FA IEC PAM 90B14 4-5 Days €950.25
BGC063130FA5009014 63/130 500 FA IEC PAM 90B14 4-5 Days €950.25
BGC063130FA6008014 63/130 600 FA IEC PAM 80B14 4-5 Days €950.25
BGC063130FA7508014 63/130 750 FA IEC PAM 80B14 1-2 Days €950.25
BGC063130FA9008014 63/130 900 FA IEC PAM 80B14 1-2 Days €950.25
BGC40075400715OBS 40/75 400 U IEC PAM 71B14 4-5 Days €349.89
BGC50110400805OBS 50/110 400 U IEC PAM 80B5 4-5 Days €666.82
BGC50110750805OBS 50/110 750 U IEC PAM 80B14 1-2 Days €666.82
BGC631301200805OBS 63/130 1200 U IEC PAM 80B5 1-2 Days €874.08
BGC631301800805OBS 63/130 1800 U IEC PAM 71B5 4-5 Days €874.08
BGC63130300905OBS 63/130 300 U IEC PAM 90B5 4-5 Days
BGC63130400905OBS 63/130 400 U IEC PAM 90B5 4-5 Days
BGC63130500805OBS 63/130 500 U IEC PAM 80B5 1-2 Days €874.08
BGC63130600805OBS 63/130 600 U IEC PAM 80B5 1-2 Days €874.08
BGC63130750805OBS 63/130 750 U IEC PAM 80B5 4-5 Days €874.08
* Other prices are available for Manufacturers and Resellers, as well quantity-based discounts.
Note: Standard frame colour is grey RAL 9006 and RAL 7030. Occasionally, we reserve the right to deliver the products in other colours, like dark grey or blue.



Accessories

The optional accessories available for all series are the output flanges in compact or long version, the single or double solid output shaft and the torque arm. Accessories are usually requested not assembled on the main unit. If required, BERNATI can supply all accessories already assembled on the main unit, according to customer specification.

Recommendation

In compliance with the machine directive, gearboxes are considered components intended to be fitted into another component or machine and they cannot be placed in service until the machine it is built in is declared in conformity with machine directive 2006/42/CE.



Standard Specifications
Worm gearboxes | BGC Series

_Gearbox sizes from 025 to 150

_Output nominal Torque up to 1800Nm

_Input motor power from 0,09 to 15kW

_Aluminium alloy case sizes 025 to 090

_Cast iron case sizes 110 to 150

_Output Hollow shaft, with opcional solid shaft



Mounting positions

"
